CGA3E1X7R1V105K080AC, TDK 1μF Multilayer Ceramic Capacitor MLCC, 35V dc V, ±10% , SMD, Конденсатор

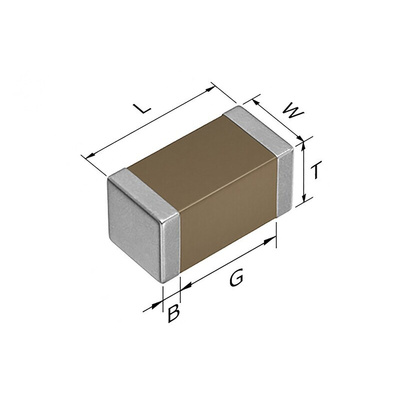

TDK 0603 (1608M) MLCC SMD Capacitor

The TDK 0603 (1608M) surface mount MLCC has a capacitance of 1μF. It is a product in which multiple sheets of dielectric and conductive material are layered alternately. TDK CGA Series MLCC is AEC-Q200 rated. The CGA Series MLCC's from TDK are manufactured using a tested and stable manufacturing process and subjected to increased inspections that guarantee a higher level of reliability. This capacitor is available in general voltages up to 50V, mid-voltage up to 630V and up to 150°C operating temperature. In addition, thinner ceramic dielectric layers and multilayer technology give these capacitors a large capacitance. The series is available in Standard, Flexible (Soft) and Conductive Epoxy terminations. The CGA Series is used in a variety of applications, including automotive powertrain systems and safety equipment, smart meters, power supplies, sensor modules and higher reliability/safety applications.

Features and Benefits

• High ripple resistance due to low ESR
• Low self-heating
• No polarity
• Operating temperature ranges between -55°C and 125°C
• Reliable
• Superior mechanical strength
• Tolerance is ±10%
• Voltage rating is 35VDC

Applications

• Applications requiring higher reliability
• Automotive electronic equipment (Engine control units, Sensor modules and Battery line smoothing)
• LC resonance circuit (C0G)
