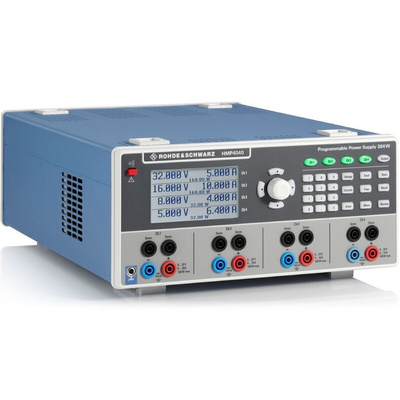

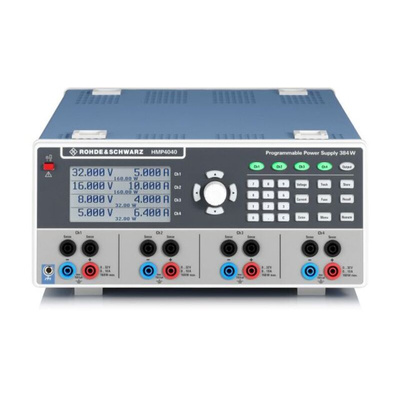

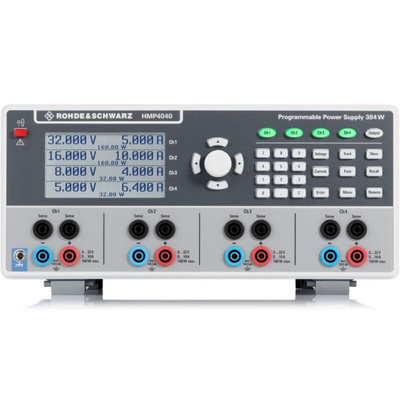

HMP4040, Rohde & Schwarz HMP Series Digital Bench Power Supply, 0 → 32V, 10A, 4-Output, 384W - UKAS Calibrated, Блок питания

Rohde & Schwarz Hameg Bench Power Supply

The Rohde & Schwarz HMP series Hameg 384W bench power supply has four-channels, an output voltage rating of 32V and a current rating of 10A. These rugged instruments are ideal for a wide variety of requirements from educational and industrial applications. They offer high-efficiency with low residual ripple and many protection functions.

Features and Benefits

• High-resolution for settings and read back and up to 1mV and 0.1A,0.2A or 1.0A
• Adjustable overload and overvoltage protection in the form of an electronic fuse or as otherwise called FuseLink for each channel
• Four channels available
• Multiple interface options in the form of RS-232, USB, Ethernet and GPIB card specially for remote control feature
• Integrated free PC software, EasyArb for generating user defined waveforms
• Isolated yet easily combinable channels for driving balanced circuitries
• Easily programmable time-voltage and time-current feature for advanced serial and parallel operation
• Simultaneous voltage, current and power display
• Rack-mountable

Applications

• General laboratories
• Education
• Industrial applications
• Production units
• Workshops

R&S®HMP Power Supply Series Datasheet
