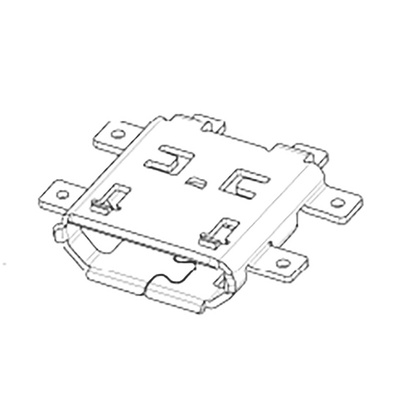

47491-0001-TR425, Molex USB Connector, PCB Mount, Socket 2.0 Micro B, Solder, Right Angle, Разъем

1796478
Номер производителя: 47491-0001-TR425Производитель: Molex
Цена за шт. (норма упаковки 425 шт)
255.00 руб. (С НДС) *
Количество 425+ 850+ 2125+ 4250+
Цена 255.00 руб. 234.00 руб. 195.00 руб. 186.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Molex 0.65 mm Pitch micro USB Connectors

0.65 mm pitch micro USB Type A and Type AB connectors with a compact design, a PCB space saving footprint and a high durability of over 10000 insertion cycles. The specification of these micro USB connectors supports OTG (On-The-Go) and enable portable devices to communicate directly with each other without the need for a host computer. These micro USB receptacle connectors have a lead-in feature on the housing that enables blind mating to the cable plug. A fully shielded laser-welded stainless steel shell offers mechanical strength and EMI protection. The connector shell features latching windows with tabs for a secure connection to the mating plug assembly. The edge contact beam geometry of the connector shell facilitates high-speed data transmission. These micro USB Type A and Type AB connectors are available as top, bottom and mid-mount.

Features and Benefits

• Compact, space saving design
• High durability of over 10000 insertion cycles
• Lead-in feature on the housing for blind mating
• Laser welded stainless steel shell for mechanical strength
• Fully shielded for EMI protection
• Latching tabs for secure mating connection
• Edge contact beam geometry for high-speed data transmission

Product Application Information

These micro USB Type A and Type AB connectors are ideal for use in small portable devices. Applications include mobile phones, PDA, GPS, MP3 players, digital still and video cameras, printers, keyboards, flash drives and vehicle battery chargers.

Micro-USB B Receptacle, Mid-Mount, Matte Tin Plated Shell, Lead-Free

Molex Micro-USB Connectors

Техническая спецификация
pdfDatasheet
Версия USB:
2.0
Концевая заделка:
Припой
Материал контактов:
Медный сплав
Номинал тока:
1.0 A, 1.8A
Номинальное напряжение:
30.0 V
Ориентация корпуса:
Правый угол
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-30.0°C
Род:
Female
Серийный номер:
47491
Тип USB:
Micro B
Тип монтажа:
Крепление на печатной плате
