PNDB0708PVT2000001, ProMinent Air Operated Positive Displacement Pump, 6.3L/h, 7 bar, Насос

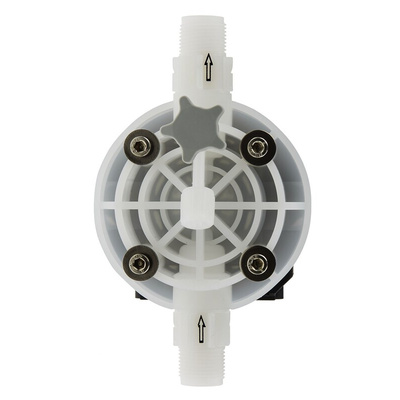

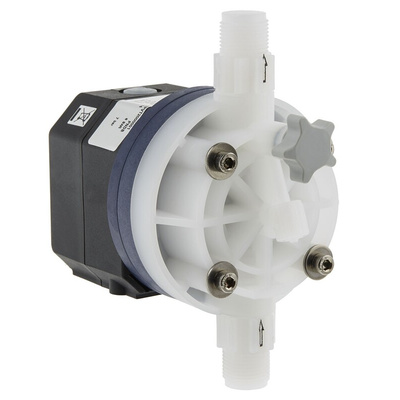

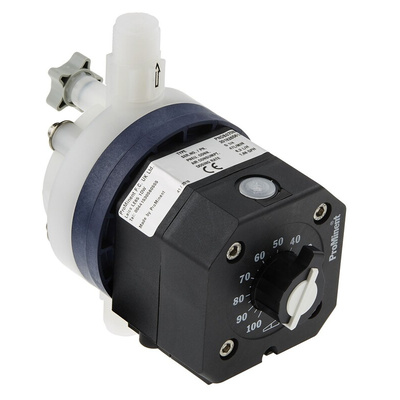

ProMinent Positive Displacement Pump

The ProMinent air operated positive displacement pump of 6.3L/h flow rate and 7bar working pressure. The compression stroke is provided by compressed air applied to a diaphragm, which drives the PTFE-coated metering diaphragm. The suction stroke is actuated by the spring-loaded force. The pump capacity is adjusted by the stroke length and stroke rate. Mainly used in the chemical industry.

Features and Benefits

• Material version PVDF and stainless steel
• No electrical supply voltage needed
• Spring-loaded valves for higher viscosity media
• Stroke rate of up to 180strokes/min

Certifications

• CE certified

PNDB0708PVT2000001 - Datasheet
