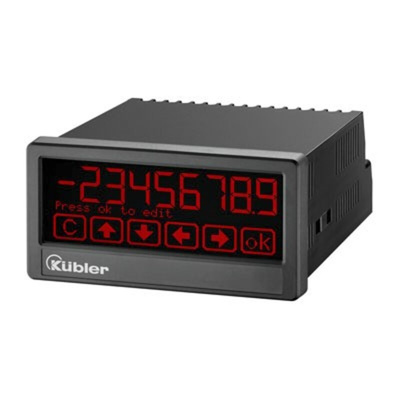

6.570T.010.302, Kubler SSI-touch display 570T

Номер производителя: 6.570T.010.302 Производитель: Kubler
Цена за шт.
69605.25 руб. *

Срок поставки: 3-5 недель


* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

The fast SSI display type 570T is designed for absolute SSI encoders with a resolution up to 32 bits. It can be used as either a master or a slave display.Thanks to simple bit assignment and bit blanking the display, which can be scaled and linearized, can also be cascaded, in order to extend the display range as desired. Output options include 4 limit values, analog output or RS232 interface.

Suitable for SSI-protocols from 8 up to 32 bits.
4 switching outputs to work as limit or preset values (reaction time < 1 ms), also with programmable tracking preset.
Scaleable analog output (reaction time < 1 ms), resolution 16 bit, -10 ... +10 V, 0 ... 20 mA or 4 ... 20 mA.
Serial interface RS232 or RS485 for reading data in and out.
Version with 2 relay outputs as limit values or presets, can also be programmed as tracking preset.
Gray or binary code.
96 x 48 mm DIN-housing.
AC and DC power supply in one unit.
Master- or slave mode.
Screw terminal connection

Техническая спецификация

Для использования с:
Position Preset Counters
Тип аксессуара:
Mounting Kit
