SV231DPUA, StarTech.com 2 Port USB DisplayPort KVM Switch, 3.5 mm Stereo 3840 x 2400 Maximum Resolution

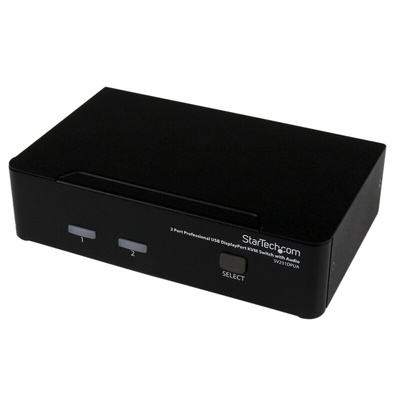

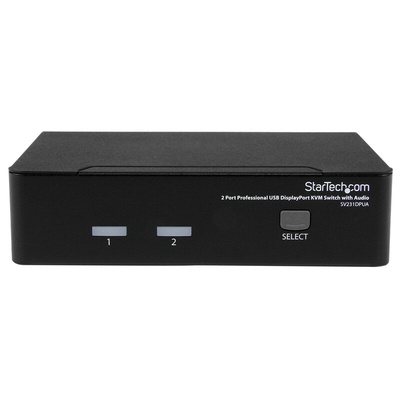

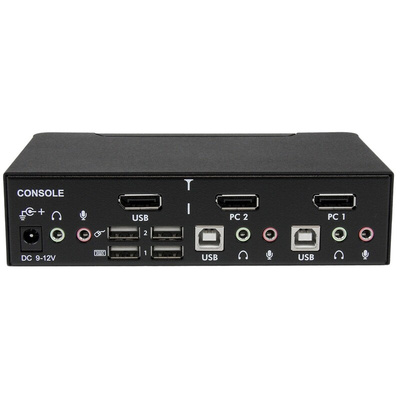

SV231DPUA 2 Port DisplayPort KVM Switch

The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.

A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.

A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.

This product is backed by a Startech.com 3-year warranty with free lifetime technical support.

Features & Benefits

• Supports native DisplayPort computer connections - no adapter required
• Native resolution: 2560 x 1600 @ 60Hz, beyond 1080p
• Supports a maximum resolution of 3840 x 2400 at lower refresh rates
• VESA and CEA compliant
• Supports 3.5mm Stereo analogue audio
Supports 7.1 Channel High Definition Digital Audio through the DisplayPort connection
• USB 2.0 peripheral sharing
• No driver or software installation required
• Hotkey and push-button switching
• Full plug-and-play support with USB keyboards, mice, and connected peripherals
• Platform Independent - Supports Mac and PC operating environments
• Supports DDC2B for monitor detection
• Supports hot-plug, un-plug and link status-failure detection
• User-defined scan time intervals
• Compatible with Mini-DisplayPort adapters, making it suitable for Apple MacBook® connectivity
• Support for both analogue and digital audio sources provides the versatility to use either connection depending on preference/availability
• USB peripheral sharing eliminates the expense of duplicate devices (printers, scanners, etc.)

Applications

• Multimedia design, multimedia post-production and video editing using Mac or PC computers
• High resolution medical imaging and Health care display, such as MRI and Xray display
• Manufacturing line computer control
• PC test/burn-in computer control
• High-res Digital Signage server control
• Satellite Topography
• Dual system control for a single work terminal

What’s in the package?

• 2-port DisplayPort KVM switch
• foot pads
• universal power adapter (NA/UK/EU/AU)
• instruction manual

SV231DPUA Datasheet
