ST1000SPEXI, StarTech.com Startech 1 Port PCIe RJ45 Network Card, 10/100/1000Mbit/s, Сетевая карта

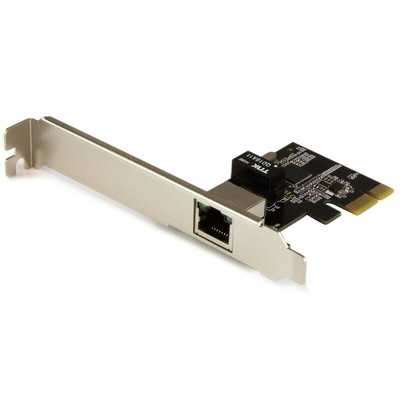

ST1000SPEXI PCIe Network Card

Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot. This GbE (Gigabit Ethernet) network card makes it easy to create a high-performance, cost-effective networking solution.

The performance and reliability you demand in network connectivity

This PCI Express Gigabit Ethernet card utilizes the Intel® I210-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the GbE network card provides an effective upgrade or replacement network port, with a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.

A versatile and cost-effective solution

Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring servers or workstation upgrades. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On-LAN and Auto MDIX.

Easy installation

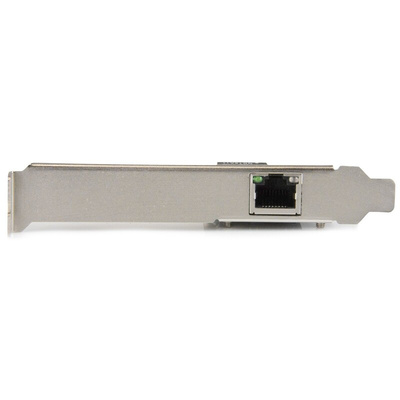

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.

The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Auto MDIX support
• Auto negotiation support
• Wake-on-LAN support
• Up to 9K jumbo frame support
• IEEE802.3az Energy Efficient Ethernet (EEE)
• Supports IEEE 802.1Q VLAN tagging
• Supports Audio-Video Bridging
• Full or low-profile (LP bracket included) installation
• Full duplex support
• Add a 10/100/1000 RJ-45 Ethernet port to a client, server or desktop through one PCIe slot

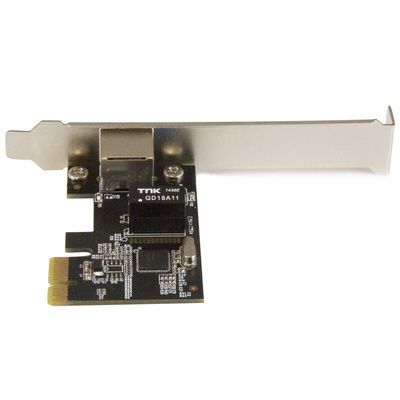

• Intel I210-AT chipset
• PXE network boot

Applications

• Upgrades to servers or workstations in need of enhanced performance, advanced features and greater reliability
• Upgrade a 10/100 Ethernet port on your computer to GbE network capability
• Add GbE networking capabilities to an old system that doesn't have an Ethernet port
• Add an additional Ethernet port to a workstation or server computer for redundancy

What’s in the package?

• 1 Port Network Card
• Low Profile Bracket
• Instruction Manual

ST1000SPEXI Datasheet
