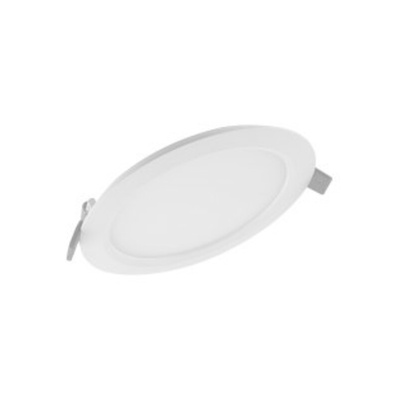

4058075078994, LEDVANCE LED Downlight, 220 → 240 V, 118 x 30 mm, 6 W

Ledvance DL Slim Round DN 105 Downlight.

The DN 105 Downlight is a slim, round, neat, compact and functional downlight. The body and cover are made from Polycarbonate (PC), providing you with quick, easy and simple connection with an integrated LED driver. The downlight is energy efficient giving you a 60% saving in comparison to other CFL lamps plus IP20 protection. The downlight can be wall and ceiling mounted.

Features and Benefits.

•DL Slim DN 105 Downlight.
•Body and cover made from (PC) Polycarbonate.
•Round
•Neat
•Compact
•Functional.
•Low installation depth.
•60% Energy saving.
•Homogenous light.
•High luminous efficacy.
•Easy installation.
•Fast connection.
•Integrated LED driver.
•Small visible bezel.
•Connector box with push wire terminals.
•Light guide made of non-yellowing PMMA (Poly-methyl-methacrylate), long life cycle.

DL DN 105 4000 K WT Features.

•Output current 108 mA.
•Luminous flux 430 lm.
•Luminous efficacy 70 lm/W.
•Light colour is cool white.
•Beam angle 120°.
•Weight 158 g.
•Colour of housing is white.
•Temperature range -20°C to +50°C.
•Recessed mounting, ceiling or wall.
•This light is not dimmable.
•Connections are 2-pole, screwless terminals.

Typical Applications.

•Anywhere to replace compact fluorescent lamps.
•General lighting areas.
•Public areas.
•Stairways.
•Corridors.
•Foyers.
•Shops.

Ledvance Slim Round Downlights Available.

•Stock number 1798518, DL Slim DN 105, 6 W, 220 to 240 V, 4000 K, Cool White, 118 x 30 mm, cut out 105 mm.
•Stock number 1798519, DL Slim DN 155, 12 W, 220 to 240 V, 3000 K, Warm White, 169 x 30 mm, cut out 155 mm.
•Stock number 1798520, DL Slim DN 155, 12 W, 220 to 240 V, 4000 K, Cool White, 169 x 30 mm, cut out 155 mm.
•Stock number 1798521, DL Slim DN 210, 18 W, 220 to 240 V, 4000 K, Cool White, 225 x 30 mm, cut out 210 mm.
•Stock number 1837365, DL ALU (aluminium) DN 150, 14 W, 220 to 240 V, 4000 K, Cool white, 160 x 52 mm, cut out 200 mm.
•Stock number 1837366, DL ALU (aluminium) DN 200, 25 W, 220 to 240 V, 4000 K, Cool white, 215 x 61 mm, cut out 200 mm.

FAQ’S

How much power do LED’s use?

On average LED’s use 90% less power compared to incandescent bulbs. The reason for this is that LED’s are more efficient in converting energy into light

How long do LED’s last for?

So, we have mentioned how LED’s offer longer lifetimes and less maintenance needed, this is because it’s a type of solid state lighting. It is less likely to fail completely, a well-built Led luminaire should last up to 50000 hours.

How can LED’s save you money?

It’s thought that around 20% of a household’s energy consumption comes from lighting, within commercial premises this could be even more. The cost of switching to LED is soon outweighed with the savings made to a light source that uses a fraction of the energy.

Standards

CE, CB, EAC, RoHS, IK03, IP20, Protection Class II.
