4058075106116, LEDVANCE 8 W LED Ceiling Lighting & Batten, 220 → 240 V Linear Compact Switch, 1 Lamp, 573 mm Long, IK03, IP20

1798535
Номер производителя: 4058075106116Производитель: LEDVANCE
Цена за шт.
4290.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

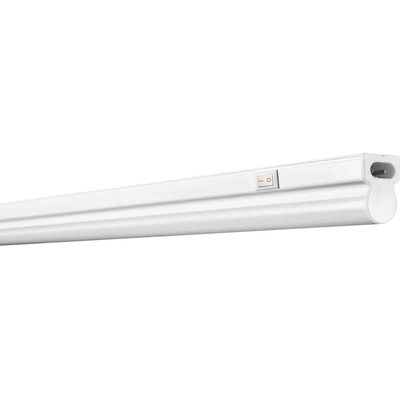

LINEAR COMPACT SWITCH 600 | Compact single or light line luminaire with switch, 8W, 3000K

Ledvance Linear Compact Switches are the ideal indoor lighting option for those looking for a compact, flexible linear luminaire lighting solution. The linear switch offers versatile mounting options as it can be mounted to ceilings, walls, in corridors, entrances, stairwells and usable under shelves, cabinets with up to 10 luminaires connected seamlessly.

Achieving a luminous flux of 800 lm and designed with a high luminous efficiency of up to 100 lm per watt. The colour temperature of 3000K of warm white light colour tone, this Linear compact switch luminaire will ensure your environment is a pleasant atmosphere.

Key product benefits include

• Compact dimensions
• Little space required thanks to compact dimensions
• Seamless connection of up to 10 luminaires in a line
• Handy switch directly installed on the luminaire
• Low flicker light thanks to special electronic control gear
• Flexible installation in 2 different angles with 2 different mounting options
• Flexible application due to a wide range of available lengths of 300 to 1200 mm.
• Angled connection possible with included cable

Additional features and benefits

• Built-in switch
• Up to 10 luminaires connectable
• Translucent end caps
• Versions with luminous flux 400…1500 lm available
• 4 different lengths available
• High luminous efficacy: up to 100 lm/W
• Glow Wire Test according to IEC 60695-2-12: 850 °C

Typical Applications

Linear Compact Switches are used when you require, clear consistent light in smaller areas. It reduces the costs compared to Fluorescent lamps with very little maintenance. Some areas you can use these lights or luminaires include:

• Direct replacement for luminaires with fluorescent lamps
• Indoor applications
• Corridors, entrance areas, stairwells, living rooms, basements
• Accent lighting
• Public areas
• Cove lighting
• Shelves, furniture integration or under cabinet mounting
• Seamless linear lighting

Equipment / Accessories

• All required accessories included

FAQ

Is this light Dimmable?
This light is non-dimmable.

What is the minimum operating temperature?
This Linear compact switch luminaire from Ledvance has an operational temperature range of -20 to +40 °C

What are the mounting options for Linear compact switch luminaire?
The Linear compact switch luminaire can be mounted to ceilings, wall, shelves, under cabinets and consists of flexible installation with different mounting options.

What type of connection does this linear compact switch contain?
Screw terminal, 2-Pole (L,N)

Standards

CE/CB/TÜV SÜD/EAC/RoHS

Техническая спецификация
pdfDatasheet
Встречающиеся стандарты:
CB, CE, TUV SUD
Глубина:
36 мм
Длина:
573 мм
Количество ламп:
1
Мощность:
8 Вт
Номинальное напряжение:
220 → 240 В
Образцовый свет:
830
Оттенок:
Теплый белый
Рейтинг энергоэффективности ЕС:
A, A+, A++
Срок службы, часов:
50000ч
Степень защиты IP:
IK03, IP20
Тип:
Linear Compact Switch
Тип лампы:
Светодиодная
Тип планки:
Single
Цветовая температура:
3000K
Ширина:
28 мм
