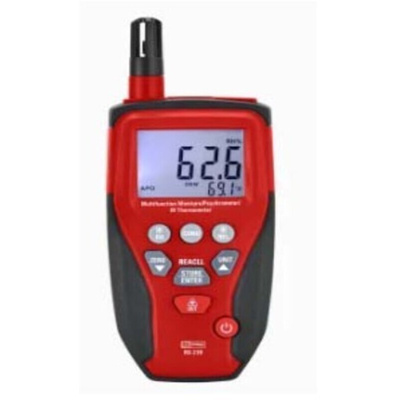

RS PRO DT-229/239 Moisture Meter, 200 °C, 99.9 % RH Max, ±2 Accuracy, Digital Display, Battery-Powered

RS PRO Multifunction Moisture Meter

Introducing the RS Pro Multifunctional Moisture Meter, a highly reliable device used for quickly and effectively measuring moisture content in a range of materials, including wood, plaster and concrete. The RS PRO DT-229/239 features pinless technology, allowing an accurate moisture measurement to be carried out without damaging the surface. An optional pin-type probe can also be attached to perform moisture readings at different penetration levels (3ft/0.9m cable length).

The RS PRO Multifunctional Meter is designed with moisture measurement in mind, however the DT-229/239 meter also has the ability to simultaneously measure and display air temperature, IR temperature or humidity, making it a highly versatile multifunctional meter. Whether you are working in a light or dark environment, viewing the results is easily achievable thanks to the large backlit digital LCD dual display screen.

Our RS PRO range offers a wide variety of durable and reliable products that are excellent value for money. Each and every RS PRO product has been rigorously tried and tested against demanding industry standards, ensuring high-quality products that are trusted by engineers worldwide.

Features and Benefits

• Pinless technology providing a non-destructive meter reading
• Optional pin probe for measurement of moisture to be carried out at various penetration levels
• Large backlit digital LCD screen, for use in light or dark environments
• Built-in humidity/temperature probe to measure relative humidity, air temperature plus grains per pound (GPP) and dew point (DP)
• Simultaneously display air temperature, IR temperature or humidity, saving time and effort
• Designed with patented IR design to measure non-contact surface temperature; 8:1 distance to spot ratio with 0.95 fixed emissivity
• Min/Max and data hold
• Easy to navigate buttons

Typical Applications

• Property and construction
• Flooring Contractors
• Furniture makers and woodworking

What is the difference between pin and pinless?

A pin-type moisture meter (or damp meter) contains metal points that are inserted into the material in order to take a reading, whereas a pinless meter uses non-invasive technology to detect how waveforms are affected by the presence of moisture in the material.

What materials can a moisture meter be used on?

• Wood
• Plaster
• Hay
• Screed
• Concrete

RS PRO Datasheet

Operation Manual
