4052899522572, Osram LED Driver, 27 → 51V Output, 71.4W Output, 1.1 A, 1.2 A, 1.3 A, 1.4 A Output, Constant Current, Драйвер светодиодов

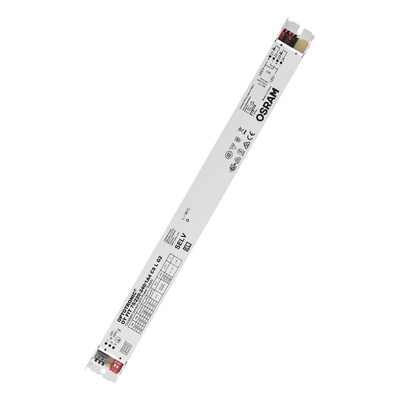

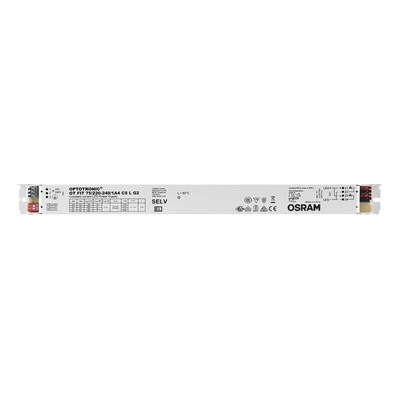

Osram LED Driver

The Osram OPTOTRONIC series LED driver is a non-dimmable constant voltage driver with a linear area constant current. It gives a high quality of light due to low output ripple current.

Features and Benefits

• High efficiency
• Lifetime: up to 100,000h (temperature at T c = 65°C, max. 10% failure rate)
• Line frequency is 50Hz/60Hz
• Maximum output power is 71.4W
• Nominal Supply voltage is 220V to 240V
• Output current is 1.1A, 1.2A, 1.3A, 1.4A
• Output supply voltage is 27V and 51V
• Temperature range at storage is between -25°C and 85°C

Applications

• Installation in emergency lighting systems
• Linear lighting for office, education, industry, storage areas, and retail
• Suitable for luminaires of protection class I

Certifications

• CCC certified
• CE certified
• EL certified
• EN 61347-1, EN 61347-2-13, EN 61000-3-2, EN 62384, EN 60598-2-22, EN 61000-3-3EN 61547
• ENEC 10
• IP20 rating
• RCM certified
• VDE-EMC certified

Datasheet
