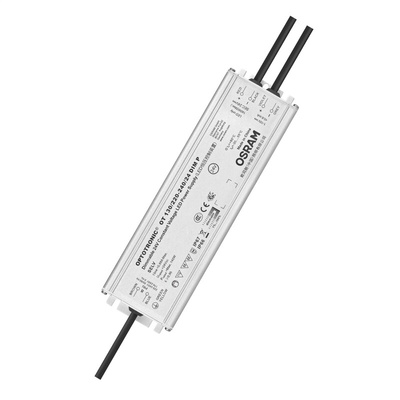

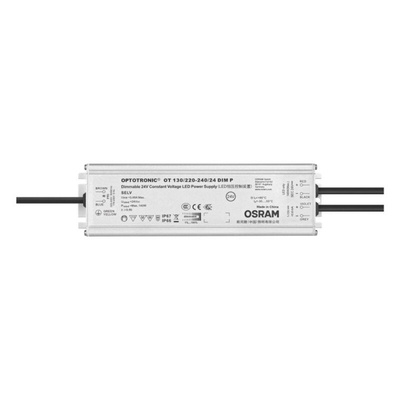

Osram LED Driver

The Osram OPTOTRONIC series is a dimmable LED driver that gives a 24.2V constant voltage.

Features and Benefits

• Dimmable via fully isolated 1V to 10V interface
• High electronic reversible short circuit, overload, over temperature protection
• Independent installation possible
• Input voltage is from 198VAC to 264VAC
• Installation in very cold and hot environments
• Lifetime is up to 50,000h
• Nominal output power is 130W
• Nominal supply voltage is 220V to 240V
• Output supply voltage is 24.2V
• Smart power supply boosting power to turn on cold LEDs
• Storage temperature ranges between -40°C and 85°C
• Very stable output power

Applications

• Facades, public squares, cruise ships
• Signage
• Suitable for indoor and outdoor installations

Certifications

• CCC certified
• EAC certified
• EN 61347-1, EN 61347-2-13, EN 61000-3-2, EN 55015, EN 60598-2-22, EN 61000-3-3, EN 61547, EN 60598-1, EN 62384
• ENEC certified
• IP66 rating
• IP67 rating
• RCM certified
