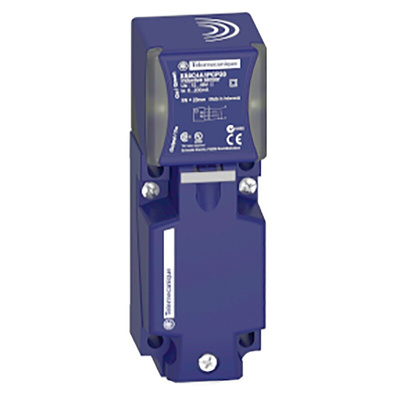

XS8C4A1PCP20, Telemecanique Sensors Inductive Block-Style Proximity Sensor, 20 mm Detection, PNP Output, 12 → 48 V dc, IP65,, Индуктивный датчик приближения

Telemecanique Inductive Proximity Sensors XS Flat form (block).

Telemecanique Inductive Proximity Sensors OsiSense XS series allow you to detect all types of objects in various applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded).

Styles Available.

• Flush and Non-Flush (shielded and non-shielded).


• Short and long body.


• PNP and NPN versions (compatible with PLCs and controllers).


• 2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch).

How do they work and where can I use them?

Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.

Applications.

• Railway, Mobile equipment, Lifts and escalators, Hoisting.


• Material handling, conveying, logistics.


• Material working, machine tools, Packaging.


• Food and beverage, Pharmaceutical, Robotics.

XS8C4A1PCP20 General Purpose Inductive Proximity Sensor (XS).

• XS8 Sensor.


• Mobile equipment application.


• Flat form (block) 40 x 40 x 117.


• Size 117 mm.


• Fixed body, Flush mountable.


• Plastic (PBT), PBT front.


• Discrete signal, 4-wire.


• 20 mm sensing distance (nominal).


• Output 1 NO + 1 NC, DC circuit, PNP.


• Screw clamp terminals.


• [Us] rated supply voltage 12 to 48 V dc (reverse polarity protection).


• 5 Position turret head detection.


• 1 LED, yellow output.


• LED - Supply on: 1 LED (green) Output state: 1 LED (yellow).


• Height and Length 40 mm.


• Width 117 mm


• IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050.


• Vibration resistance to IEC 60068-2-6.


• Shock resistance to EN 60068-2-27.


• CE marked.

Certificates.

• UL, CSA, E2, CCC, TUV.
