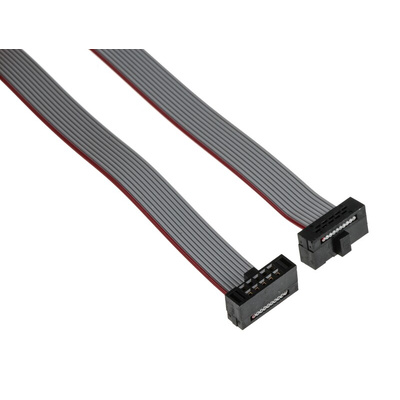

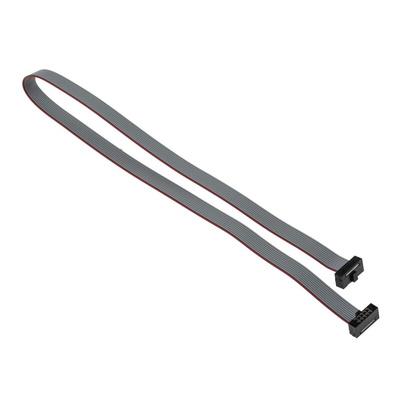

FFSD-05-D-12.00-01-N, Samtec FFSD Series Flat Ribbon Cable, 10-Way, 1.27mm Pitch, 304.8mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec Ribbon Cable, 2.3A Current Rating, Female Connectors - FFSD Series - FFSD-05-D-12.00-01-N

For seamless signal transmission between your circuit boards and peripheral devices, count on this ribbon cable from Samtec. It's terminated with IDC connectors that press on its wires for an airtight link, ensuring a reliable connection. The unit has a compact length of just 304.8mm, so it helps to keep your setup clutter-free. A pitch of 1.27mm between its contacts provides safe spacing to prevent them from touching each other, reducing the risk of short circuits. Thanks to its current rating of 2.3A, it's the right choice for low-power systems.

Features & Benefits

• Safe for use in demanding conditions, thanks to a broad operating temperature range of -40°C to +105°C
• Beryllium copper contacts are highly conductive to give you a reliable link
• Polarised design with a notch ensures you plug it in correctly
• PBT insulation keeps electrical hazards at bay

Applications

• Telecommunications
• Consumer electronics
• Military equipment

What headers does this cable mate with?

This versatile unit mates with a number of headers, including those in the FTS, FTSH, EHF, SHF and ESHF series.

Datasheet

Line Drawing - FFSD Series
