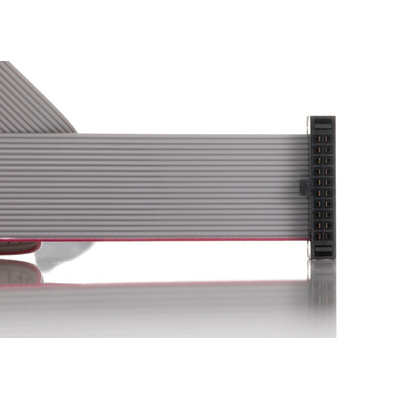

FFSD-10-D-09.00-01-N, Samtec FFSD Series Flat Ribbon Cable, 20-Way, 1.27mm Pitch, 228.6mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec Ribbon Cable, 2.3A Current Rating, 3.17mm Maximum Insertion Depth - FFSD Series - FFSD-10-D-09.00-01-N

Is complex circuit wiring tying you up in knots? Get things in order using this ribbon cable from Samtec. Its 20-way design hooks several circuits together in a flash. The gold-over-nickel contacts resist corrosion, providing a dependable connection. Thanks to the Tiger Eye IDC connector ends, plugging this product into your PCB is a walk in the park. To complete your setup, all you need is a two-row header, such as a shrouded (180-4009) or unshrouded (767-6711) model.

Features & Benefits

• Narrow 30AWG size is a breeze to route through space-restrictive areas
• Reliable in temperatures ranging between -40°C and +105°C to suit extreme environments
• PBT insulation is flame-retardant, minimising the risk and spread of electrical fires

Applications

• Electronic devices
• Telecommunications networks
• Industrial automation
• Avionics

What's the difference between beryllium copper and regular copper?

Though 100% copper is better at conducting electricity, the beryllium copper in this cable's contacts is more rigid and corrosion-resistant while still being up to 98% conductive. This means it holds up in demanding aerospace or industrial systems.
