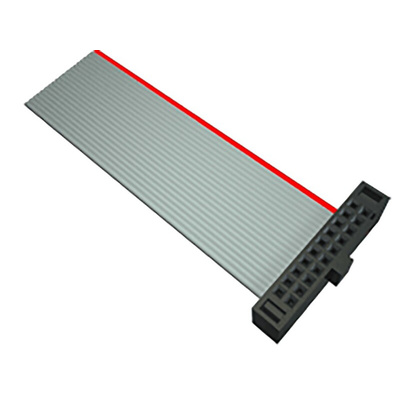

FFSD-10-D-12.00-01-N, Samtec FFSD Series Flat Ribbon Cable, 20-Way, 1.27mm Pitch, 304.8mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec Ribbon Cable, 30AWG Wire Size, Notch Polarisation - FFSD Series - FFSD-10-D-12.00-01-N

Form a connection you can count on between internal components and your circuit board with this ribbon cable from Samtec. Its 20-way configuration lets you send multiple signals simultaneously and reduces the number of single wires needed in your setup. The beryllium copper contacts are gold-plated, making them highly conductive and corrosion-resistant. This means they're well-suited to challenging industrial environments. A 1.27mm pitch between conductors boosts electrical safety by preventing arcing and short circuits. With its flat design, the cable helps to maximise space on PCBs, especially in applications with limited room.

Features & Benefits

• Safe for use in challenging settings, thanks to an operating temperature range between -40°C and +105°C
• Polarised key design prevents damage to your ports from incorrect mating
• 2.3A current rating per pin for energy efficiency and minimal heat emission
• Length of 304.8mm lets you make mid-range attachments without creating clutter

Applications

• Consumer electronics
• Military technology
• Networking equipment
• Robotics and automation

Can I install this ribbon cable in outdoor settings?

Yes, the cable's PBT body is UV-resistant, so it can withstand prolonged exposure to sunlight without degrading.
