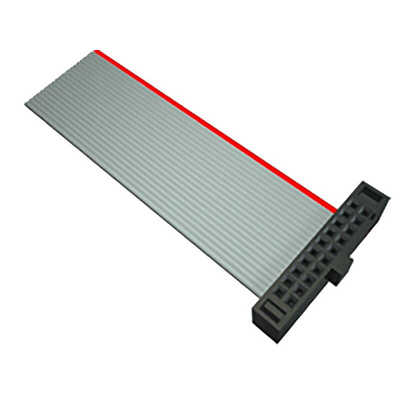

FFSD-17-D-12.00-01-N, Samtec FFSD Series Flat Ribbon Cable, 34-Way, 1.27mm Pitch, 304.8mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec Ribbon Cable, +105°C Maximum Operating Temperature, 2.3A Contact Current Rating - FFSD Series - FFSD-17-D-12.00-01-N

Looking to make a strong connection? Build reliable links between your board-mounted systems with this 304.8mm-long ribbon cable from Samtec. Its copper alloy pins move power through your setup without a hitch, so you can count on them to pass on your signal. Thanks to plug-in IDC connectors, the component slots directly into PCB headers (197-6591) for hassle-free installation. A standardised 1.27mm pitch makes short work of hooking it up to existing hardware. The cable's contacts come with smooth mating zones that minimise wear during connections for a long service life.

Features & Benefits

• Polarising connector notches remove the risk of damaging misalignment
• Double-ended, 34-way design for efficient connectivity
• Flat shape lets it slip through low-profile areas
• Insulating PBT connectors ensure safe handling around dangerous loads
• Carries current up to 2.3A per contact to tackle everyday power connections

Applications

• Control devices
• Fluid management systems
• Manufacturing plants

Does this ribbon cable come pre-assembled?

Yes, it comes with pre-fitted connectors, so it's ready to slide into place right away.

How do I identify the power connections on this cable?

This unit's power connections use colour-coded red leads, making them easy to spot at a glance.
