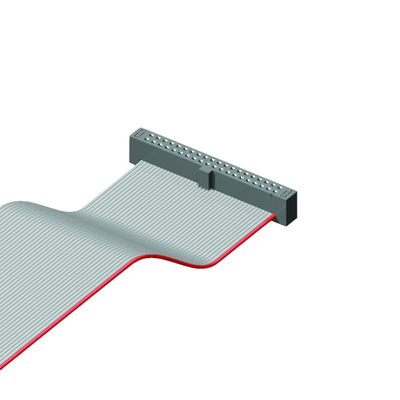

FFSD-20-D-12.00-01-N, Samtec FFSD Series Flat Ribbon Cable, 40-Way, 1.27mm Pitch, 304.8mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec Ribbon Cable, 12-Inch Assembled Length, 2.3A Current Rating Per Pin - FFSD Series - FFSD-20-D-12.00-01-N

Want your PC cards to be wired for success? Skip the individual wires and use this ribbon cable from Samtec. It connects up to 40 circuits at once, making it ideal for linking large-scale systems. The Tiger Eye IDC connectors pop onto their corresponding PCB headers in a flash to speed up wiring. Thanks to the durable beryllium copper, this component stands up to demanding industrial or aerospace applications. Rest assured, the polarization key ensures correct alignment and connection, which enhances the overall reliability of the signal transmission.

Features & Benefits

• Gold-over-nickel contacts reduce corrosion build-up to maintain a dependable connection
• PBT insulation is chemical resistant to withstand use in petrochemical processing systems
• Performs reliably in -40°C to +105°C temperatures, so it's tough enough for many industrial locations

Applications

• Computer peripherals
• Barcode scanners
• Healthcare equipment

Which headers can this cable plug into?

Samtec offers several PCB headers that work well with this ribbon cable. You can choose from their FTS (767-6724) or FTSH unshrouded options (208-1513) for your enclosed circuits, or pick one of the more durable EHF (180-3923), SHF (901-1911) or ESHF shrouded units (208-1028) instead. With so many choices, you can customise your PC cards as you see fit.
