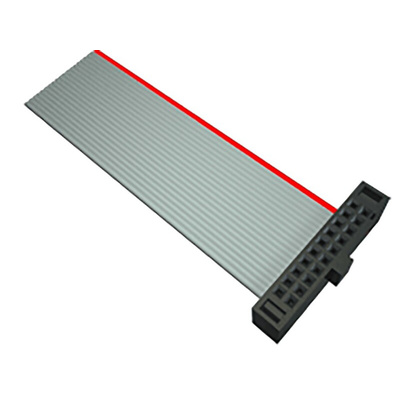

FFSD-05-S-10.00-01-N, Samtec FFSD Series Flat Ribbon Cable, 10-Way, 1.27mm Pitch, 254mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec Ribbon Cable, PBT Insulation Material, 2.3A Current Rating - FFSD Series - FFSD-05-S-10.00-01-N

Make quick work of connecting extra computer components with this ribbon cable from Samtec. The connector slots into a PCB-mounted header (180-2905), giving you a fuss-free way to link your equipment. As its nickel-plated beryllium copper contacts are highly conductive and resistant to corrosion, the unit carries power reliably between devices to keep processes rolling along. A pre-mounted IDC connector means the product is ready to click into a setup straight away. Thanks to the cable's flat shape, it's narrow and flexible enough to reach boards in awkward areas for versatile connectivity.

Features & Benefits

• Industry-standard pitch of 1.27mm, providing compatibility with everyday hardware
• Current rating of 2.3A per contact for use in light-duty tasks
• Free end lets you select the connector you need for flexible installation
• Insulating PBT body minimises exposure to dangerous electricity
• Works reliably in harsh conditions, thanks to a wide operating temperature range between -40°C and +105°C

Applications

• Office equipment
• Electronics manufacturing
• Process control

How do I know if I've connected this cable properly?

This unit's pre-fitted IDC connector comes with a polarising key that fits with its mating part only when lined up correctly, cutting the risk of damage from connection errors.
