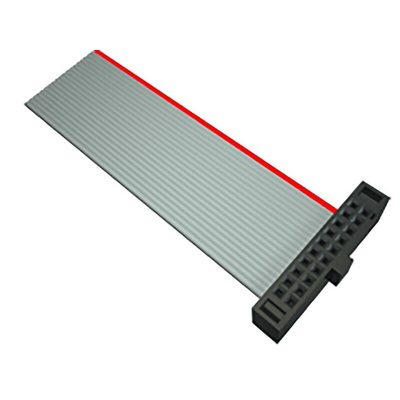

FFSD-10-D-15.00-01-N, Samtec FFSD Series Flat Ribbon Cable, 20-Way, 1.27mm Pitch, 381mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec Ribbon Cable, 2-Row Contact Layout, 2.3A Contact Current Rating - FFSD Series - FFSD-10-D-15.00-01-N

Fly through joining your board-mounted devices with this Samtec ribbon cable. By connecting up to 20 circuits at once, it quickly links new equipment to a PCB for speedy system-building. Carrying signals between two distantly spaced boards is its speciality, as the cable is 381mm long. You can't fail to connect it correctly, thanks to the helpful polarisation notches. With a contact current rating of 2.3A, this component is compatible with most standard mains electricity setups.

Features & Benefits

• Copper alloy contacts form highly conductive electrical connections for reliable signalling
• Narrow 1.27mm pitch ensures efficient use of space
• Flat, low-profile design fits easily into most standard-size enclosures
• Insulating PBT connector housing effectively protects against hazardous loads
• Supplied pre-assembled with connectors to cut down installation time

Applications

• Packaging industry
• Retail units
• Telecommunications networks
• Medical technology

How do I install this ribbon cable?

This unit comes with pluggable Tiger Eye IDC connectors, which slot into a 20-contact Samtec header (159-2325) without any special tools.

Can I use this cable in extreme temperatures?

Yes, it works in operating temperatures between -40°C and +105°C, so it's a safe bet for demanding industrial environments.
