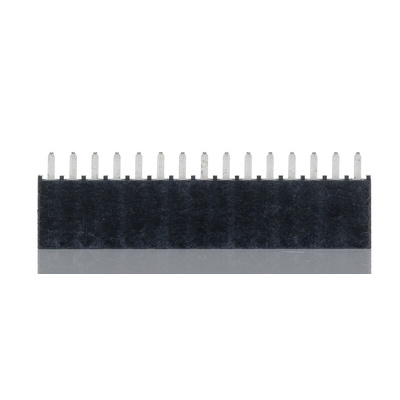

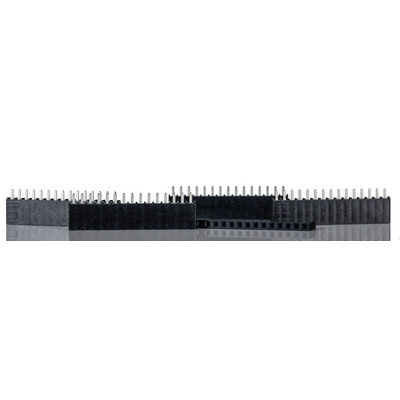

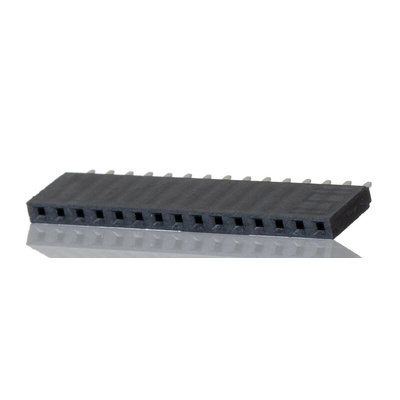

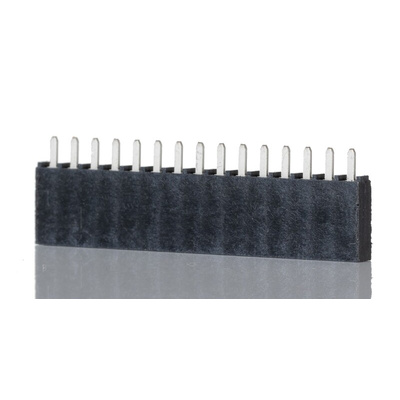

SSW-115-01-T-S, Samtec SSW Series Straight Through Hole Mount PCB Socket, 15-Contact, 1-Row, 2.54mm Pitch, Solder Termination

Samtec PCB Socket, 4.7A Current Rating, Tin Contact Plating - SSW Series - SSW-115-01-T-S

For a cable-free transmission link between circuit boards, count on this PCB socket from Samtec. It has a female channel that mates with multiple male headers, including those in the TSW (180-0511), MTLW (208-8938) and MTSW (200-0488) series. Thanks to its bronze contacts, this unit offers high conductivity, giving you reliable signal transfer. Tin plating boosts the contacts' resistance to corrosion, so you can rest assured of long-term performance. The device's 4.7A current rating makes it the right choice for light-duty applications.

Features & Benefits

• Pitch of 2.54mm prevents pins from touching each other, keeping short circuits at bay
• Safe for use in challenging conditions, thanks to a wide operating temperature range between -55°C and +105°C
• Low insertion force of 4.4N saves effort during assembly
• Fit for use in vibrating systems, as through-hole mounting ensures a firm hold on your board

Applications

• Medical equipment
• Process and packaging industry
• Robotics and automation

How durable is this socket?

The unit withstands up to 100 operating cycles for use in multiple applications. Thanks to its high-temperature thermoplastic housing, it stands up to heat and wear for long-lasting use in harsh environments.
