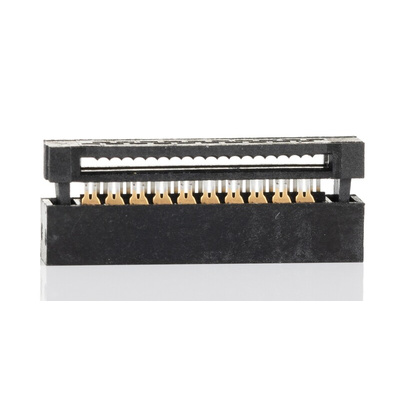

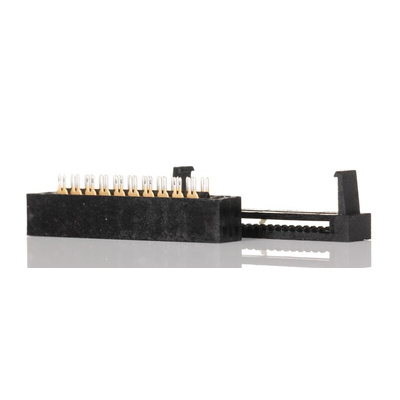

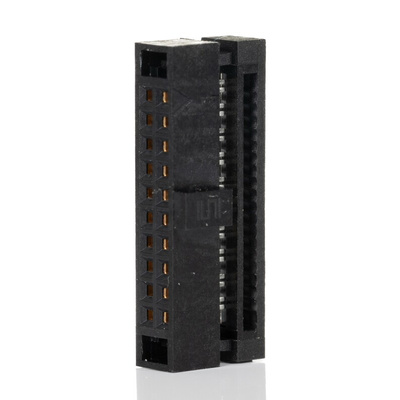

FFSD-10-01-N, Samtec 20-Way IDC Connector Socket for Cable Mount, 2-Row

Samtec Ribbon Cable, PBT Insulation Material, 2.3A Current Rating - FFSD Series - FFSD-10-01-N

Bridge the gap between your PC peripheral devices with this ribbon cable from Samtec. It features Tiger Eye IDC connectors on its ends for a reliable, airtight connection to your equipment. Thanks to its 20-way design, you get multi-circuit control, which helps to reduce the wiring needs of your setup. PBT insulation nips electrical hazards in the bud, ensuring safe signal transmission. The unit is polarised to minimise the risk of damage from improper mating. You can daisy chain it with other cables to extend its length, making it a breeze to link appliances across a distance.

Features & Benefits

• Current rating of 2.3A for use in low-current applications
• Gold contact plating improves corrosion resistance for reliable performance
• Wide operating temperature range between -40°C and +105°C for use in challenging conditions

Applications

• Mainframe computers
• Robotics and automation
• Industrial control systems

What's the pitch of this cable's connectors?

This unit's connectors have a pitch of 1.27mm, which ensures safe spacing between its contacts to minimise the risk of short circuits.

Datasheet

Line Drawing - FFSD Series
