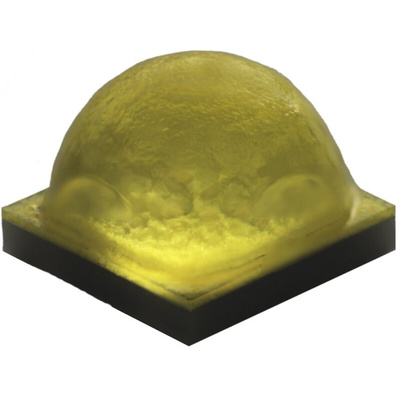

Cree LED11.9 V White LED SMD, XHP35.2 XHP35B-00-0000-0D0BE240E, Светодиод

The XLamp® XHP35.2 LeD is the next generation of extreme High Power LeDs available in the XP footprint. Built on Cree’s latest high-power LeD technology, the XHP35.2 LeD improves the voltage characteristics, efficacy and reliability of the XHP35 LED in the same 3.45 mm x 3.45 mm footprint. The new XHP35.2 LED provides an easy drop‑in upgrade so that lighting manufacturers can achieve higher system LPW on existing XHP35 designs with minimal system redesign cost.

Available in 5-step easyWhite® bins at 2700 K to 5700 K CCT and 3‑step EasyWhite bins at 2700 K to 3500 K CCT
Available in standard, 70‑, 80‑, 85‑ and 90‑minimum CRI options Binned at 85 °C
Maximum drive current: 1050 mA
Low thermal resistance: 1.8 °C/W
Wide viewing angle: 135°
Unlimited floor life at ≤ 30 ºC/85% RH
Reflow solderable

Datasheet
