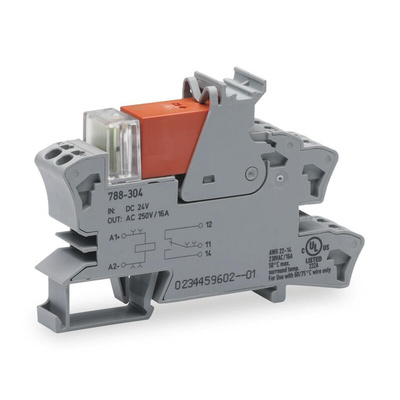

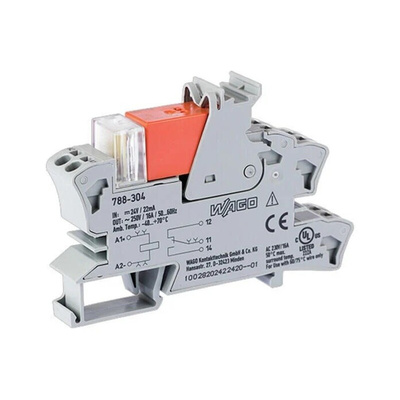

788-304, Wago 788 Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 16A Load

Wago Interface Relay, 24V DC Coil Voltage, SPDT Contact Configuration - 788 Series - 788-304

Are key components in your automation network not on the same level? Bridge the gap with this interface relay from Wago. It connects two isolated devices in your system to pass on transmissions in a flash. Reinforced insulation between the coil and contacts ensures interference doesn't get in the way. Reliable connections are a given, thanks to the highly conductive and corrosion-resistant silver nickel contacts. The relay's long lifespan of 30,000 electrical cycles means you can count on safe transmission well into the future.

Features & Benefits

• LED status indicator makes it a breeze to spot issues
• Compact dimensions of 86 (H) x 15 (W) x 54mm (D) save space in busy setups
• Performs reliably in demanding conditions, thanks to a wide operating temperature range between -25°C and +50°C

Applications

• Aerospace engineering
• Power generation
• Manufacturing industries
• Transportation networks

How do I mount this interface relay?

This relay simply snaps into place on a DIN rail. The easy-to-use eject lever makes it a walk in the park to remove the unit as needed.

Datasheet
