788-384, Wago 788 Series Safety Relay, Реле безопасности

Wago Safety Relay, Red LED Status Indicator, Cage Clamp Terminals - 788 Series - 788-384

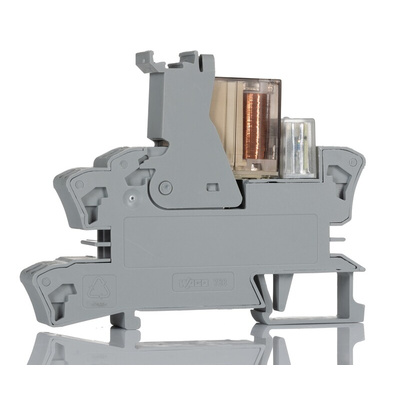

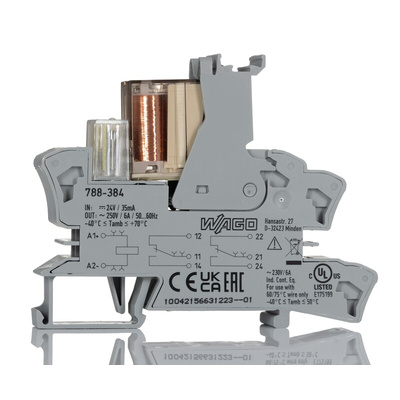

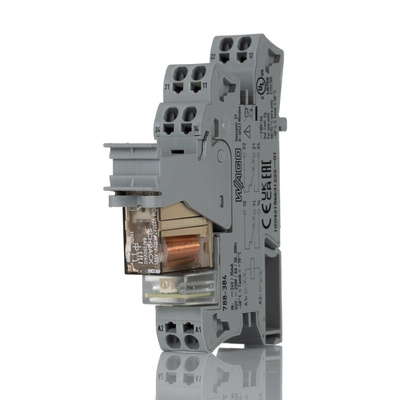

Nip electrical hazards in the bud on your industrial equipment with this safety relay from Wago. It monitors your circuit and triggers a response to faults, preventing damage to your machine. Thanks to its silver-nickel contacts, you can be sure of optimal conductivity and resistance to corrosion for reliable signal transmission. The unit is a fast-acting device, thanks to a pull-in time of 10ms and drop-out time of 4ms. As it snaps into place on a DIN rail, you can leave your tools in the box.

Features & Benefits

• Compact dimensions of 64 (H) x 15 (W) x 86mm (D) make it a space-efficient choice for busy setups
• Rated impulse withstand voltage of 6kV to protect your appliances from sudden power spikes
• Light weight of 50.3g puts minimal strain on your rail
• IP20 rating shows that it's finger-safe and protected against objects larger than 12mm in size

Applications

• Switchgear systems
• Process and packaging equipment
• Robotics and automation

How do I know the status of this relay?

The unit's red LED indicator helps you to monitor it efficiently.

Datasheet

Instruction Sheet - 788-384
