FFSD-20-01-N, Samtec IDC Connector

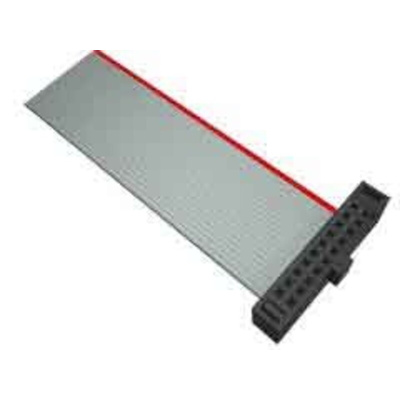

Samtec Ribbon Cable, 40-Way, 2.3A Current Rating - FFSD Series - FFSD-20-01-N

Bridge the gap between components on your circuit boards with this ribbon cable from Samtec. It features Tiger Eye IDC connectors on both ends that ensure an airtight link, giving you a reliable connection. The unit's PBT housing gives you a two-for-one advantage, as it offers resistance to impact in harsh settings as well as insulation from electric shocks for safe operation. Installing this component is a breeze and doesn't need any tools, thanks to its plug-and-play functionality. Notch polarisation ensures correct mating onto the compatible pin header for assembly without a hitch.

Features & Benefits

• Pitch of 1.27mm ensures safe spacing between pins to prevent short circuits
• Current rating of 2.3A per pin makes it well-suited to light-duty applications
• 40-way construction allows for multi-circuit signal transmission
• Nickel plating on contact area improves resistance to corrosion for long-term performance

Applications

• Security and surveillance systems
• Process and packaging equipment
• Robotics and automation

What's the temperature threshold of this ribbon cable?

This cable operates reliably in temperatures ranging between -40°C and +105°C, making it a safe choice for demanding conditions.
