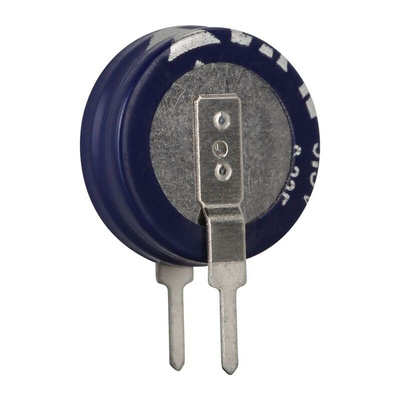

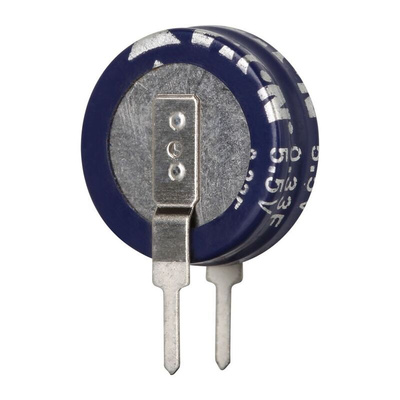

KR-5R5V334-R, Eaton 0.33F Supercapacitor -20 → +80% Tolerance, 5.5V dc, Through Hole, Конденсатор

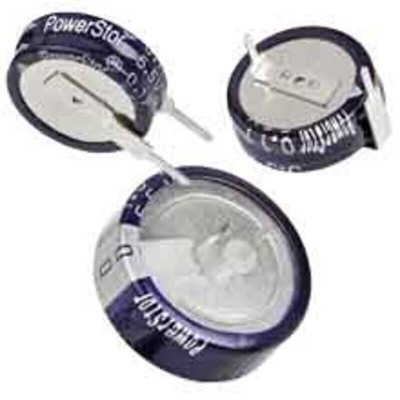

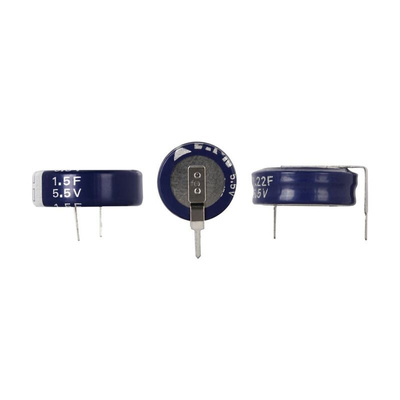

Eaton Supercapacitor, Vertical Type, 1.4g Weight - PowerStor KR Series - KR-5R5V334-R

Ensure your network switches and equipment are always ready to spring into action with this supercapacitor from Eaton. Its high energy density means you can use it to store a large amount of power, which helps to keep devices fully charged and running reliably. Frequent use won't sap the energy in this durable device – you can use it for up to 1,000 hours without wearing it out. An equivalent series resistance of 50Ω gives you the benefit of superior power, making it compatible with high current loads. Reach for this supercapacitor to keep computers and peripherals or utility meters running like clockwork.

Features & Benefits

• Wide operating temperature range between -25°C and +70°C, making it suitable to use in demanding locations
• Compact dimensions of 12.7 (H) x 11.5mm (D) means it needs minimal mounting space
• Short recharging time ensures there's minimal risk of backup power failure

What's the maximum operating voltage of this supercapacitor?

This supercapacitor has a maximum operating voltage of 5.5V DC. This is clearly indicated on the product to minimise the chance of you using it with mismatched equipment.

Note

Eaton formerly known as Bussmann
