RS PRO RSSA-9300B TG Desktop Spectrum Analyser, 9 kHz → 3 GHz, Анализатор спектра

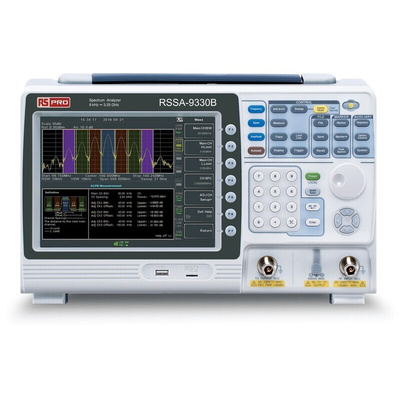

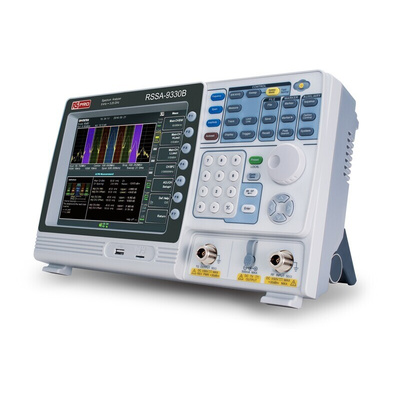

RS PRO RSSA-9300B Desktop Spectrum Analyser with Tracking Generator

Introducing the RSSA-9300B desktop spectrum analyser from our trusted and reliable own brand RS PRO, a highly reliable and efficient device used for analysing the frequency spectrum of RF, radio frequency and audio signals. This lightweight yet durable all-purpose analyser provides accurate measurements and is ideal for general signal monitoring requirements, as well as educational purposes due to the user-friendly capabilities featured. This budget-friendly unit doesn’t compromise on quality and is a versatile and essential piece of equipment that covers your testing needs, regardless of application. This excellent analyser offers a bandwidth of 9 kHz - 3 GHz, along with a range of unique features including auto wake-up, sequence function, and limit line testing allowing you to enhance your analysis with ease.

The tracking generator feature provides you with a more flexible and highly valuable spectrum analyser, as it allows the device to be used a scalar network analyser by making circuit response measurements.

Features and benefits

• Frequency Range : 9 kHz - 3 GHz
• 0.025ppm Frequency Stability and 1ppm Aging Rate
• Built-in Preamplifier, 50dB Attenuator, and Sequence Function
• RBW : 1 Hz - 1 MHz
• Sensitivity : -149 dBm/Hz (@PreAmp on)
• Built-in AM/FM Demodulation & Analysis
• Built-in P1dB Point, Harmonic, Channel Power, N-dB Bandwidth, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, Noise Marker, Frequency Counter, Time Domain Power, Gated Sweep
• Built-in Spectrogram, Topographic and Dual-View Display Modes
• Remote Control Software : SpectrumShot
• Remote Control Interface : LAN, USB, RS-232
• Options : Tracking Generator, GPIB Interface, Battery Pack

Applications

Spectrum analysers are the perfect device used for the measurement and analysis of input signals along with the frequency range and are used in a wide range of applications including:

• Sound engineering
• RF engineers
• Geology
• Astronomy
• Biochemistry

What is included?

• RS PRO RSSA-9300B Spectrum Analyser
• Power Cord
• Certificate of Calibration
• CD-ROM (with Quick Start Guide, User Manual,Programming Manual, SpectrumShot Software, SpectrumShot Guide & IVI Driver).

Measurement applications

The RSSA-9300B series offers over 20 rich signal processing functions, including AM/FM modulation signal analysis, signal channel analysis, and CATV parameter test, characteristic test on signal stability, and frequency response or power linearity tests for components to substantially bring up the measurement convenience. Many of these features that come as standard on the RSSA-9300B series are only available as additional extras on many other competitor analysers in the same class, providing you with a truly unique and powerful device at an excellent price.
