RS PRO Power Meter, Absolute Maximum Power Measurement 2W, Absolute Maximum AC Current Measurement 20 A ac, 200 mA ac

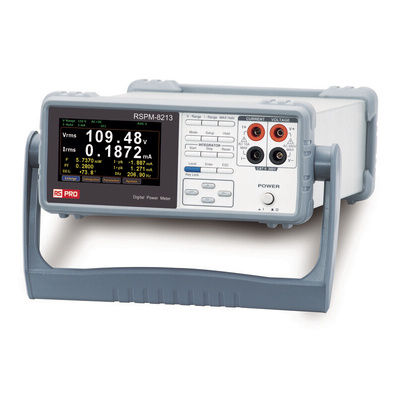

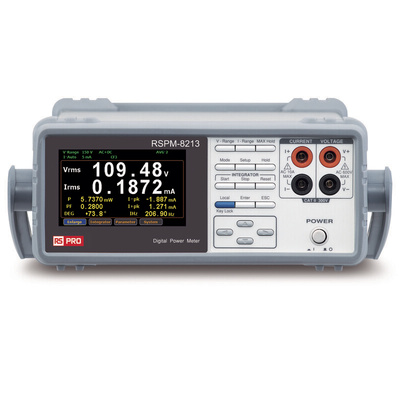

RS PRO AC Power Meter

Introducing the AC power meter from our trusted and reliable own brand RS PRO, a highly accurate power meter specifically designed for the measurement of single-phase (1P/2W) AC power units. This powerful device also features a clear and precise 4” TFT LCD, five-digit measurement display allowing you to quickly and efficiently view results in real-time. This versatile meter from RS PRO provides a diverse measurement of items and functions, including voltage, current, frequency, active power, apparent power, reactive power, power factor, crest factor, and total harmonic distortion. This durable meter also incorporates two data display modes consisting of a standard display and a simple display, depending on the type of application required.

Features and benefits

• 4” TFT LCD five-digit measurement display, providing clear and precise results
• Perfect for single-phase (1P/2W) AC power supply's power measurements
• Basic accuracy : ±(0.1% of reading + 0.1% of range)
• Front panel test terminal
• Standard interfaces: RS-232C, USB Device, LAN
• Optional test fixture : GPM-001
• Standard display: displaying two major measurement items + six minor measurement items
• Simple display: displaying test data of four different measurement items
• Voltage/current test frequency bandwidth : DC ∼ 6 kHz
• Watt resolution: 1 mW
• Current Resolution : 0.1 A
• Current/Voltage measurements reach CF=3 for distorted wave and CF=6 for half range
• W-h power vs time/A-h current vs time integration function
• Total harmonic distortion measurement

Applications

Power meters are a highly precise and effective device used to accurately measure power, including single-phase through to three-phase. Power meters are available in a range of sizes and can be powered by battery or mains. Depending on the application required, they can measure a range of parameters including voltage, current, frequency and more.

Is this power meter calibrated?

This model is not calibrated, however, we do offer a calibrated version - Stock No. 1805100

Is this battery powered or mains?

This meter is powered by a mains plug, providing maximum power and output.

What is included?

• Safety Instruction Sheet x 1
• Power cord x 1
• Test lead GTL-209 x 1
• CD x 1 (including complete user manual and USB driver)
