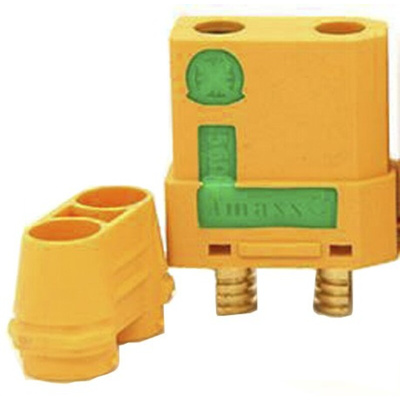

RS PRO Compact Power Connector Socket, 2P, 40A, 500 V dc

RS PRO Compact Power Connector Socket, 2P, 40 A, 500 V DC

Use this miniature power connector from RS PRO in applications where space is limited. It's ideal for hooking up low voltage equipment to a mains supply and is suitable for heaters, lighting and general industrial use.
The small socket has a strong polyamide housing, which has good wear resistance to extend the unit's working life. This plastic stands up well to high temperatures, so it won't melt when exposed to extreme levels of heat. Gold-plated contacts enhance its electrical conductivity to keep the socket in good working order. As gold doesn't corrode, you can be sure the contacts won't rust easily, even when exposed to moisture.
A connector like this can be used on domestic appliances as well as industrial equipment. They're supplied in handy packs of 10, so you don't need to worry about running short next time you need to replace an existing plug.

Features and Benefits

• Brass contact material
• Gold contact plating
• Polyamide housing material
• Female socket
• Current rating of 40 A
• Operating temperature range of -20°C to +120°C
• Pole format of 2P
• Voltage rating of 500 V DC

The RS PRO compact female power connector socket has 2 poles, current rating of 40A and voltage rating of 500 V dc. It has brass contact material and gold contact plating.

RoHS compliant
RS pro approved
3 years warranty
Polyamide housing material
Operating temperature ranges between -20°C to +120°C

RS PRO Datasheet
