2907160, Phoenix Contact 100 → 240V ac Input DIN Rail Uninterruptible Power Supply (120W), TRIO-UPS, ИБП

Phoenix Contact TRIO-UPS

The Phoenix Contact range of TRIO-UPS is a compact range of DC uninterruptible power supplies.
The UPS will switch to battery operation with no interruption if there is a mains power failure. This provides the protection and reliability of your electrical loads. When the mains power is restored the UPS will switch to normal operation.

Features and Benefits

• The power supply and electronic switchover in the same housing means that you save space
• Large selection of VRLA energy storage systems means long buffer times
• Push-in connection means they are easy to install
• Wide temperature range
• Use anywhere in the world
• No power supply is not an issue as you can start up using the energy that is stored
• Adapt the behaviour to your application by using UPS-CONF software

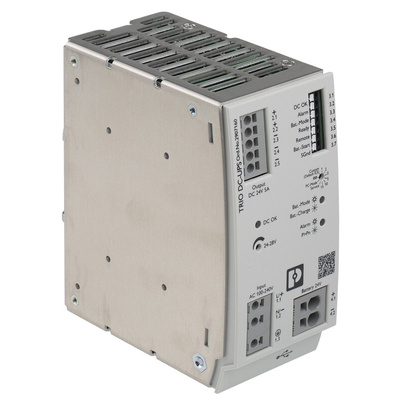

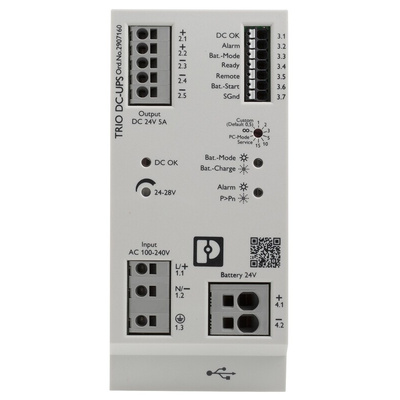

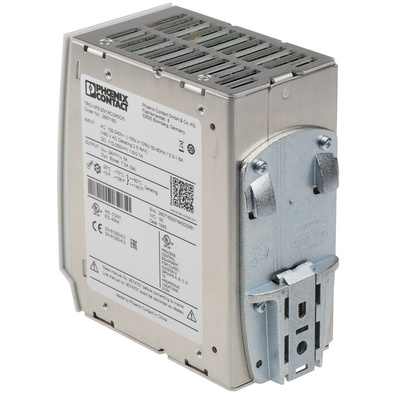

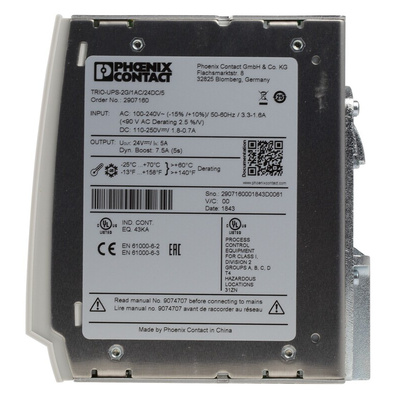

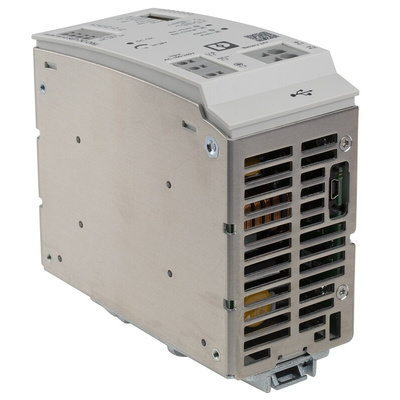

Phoenix Contact Uninterruptible Power Supply, 24V DC Output, 60mm Length - TRIO-UPS-2G/1AC/24DC/5 - 2907160

Looking for a tough and hard-wearing UPS (uninterruptible power supply)? This device from Phoenix Contact is built to withstand harsh ambient conditions and features a robust electrical and mechanical design. It's an ideal choice for machine-building applications as it ensures the reliable start-up of loads in most environments.
The unit combines a UPS module and power supply in one device for convenience and enhanced packing efficiency on a DIN rail. It includes a USB (universal serial bus) interface. This lets you connect it to higher-level controllers, such as industrial computers, for smooth network communication and high levels of efficiency.
This UPS offers outstanding resistance to shock, so it's safe to use in demanding industrial operating conditions. Extensive testing ensures it's mechanically robust enough to withstand high levels of vibration.

• Compact dimensions of 130 (H) x 60 (W) x 115mm (D) for versatile use
• IP20 (ingress protection) rated enclosure is touch-proof and protected from dirt particles larger than 12mm
• Unit weighs in at only 750g
• Operates safely in temperatures ranging from -25°C to +70°C
