2907161, Phoenix Contact 100 → 240V ac Input DIN Rail Uninterruptible Power Supply (240W), TRIO-UPS, ИБП

Phoenix Contact TRIO-UPS

The Phoenix Contact range of TRIO-UPS is a compact range of DC uninterruptible power supplies.
The UPS will switch to battery operation with no interruption if there is a mains power failure. This provides the protection and reliability of your electrical loads. When the mains power is restored the UPS will switch to normal operation.

Features and Benefits

• The power supply and electronic switchover in the same housing means that you save space
• Large selection of VRLA energy storage systems means long buffer times
• Push-in connection means they are easy to install
• Wide temperature range
• Use anywhere in the world
• No power supply is not an issue as you can start up using the energy that is stored
• Adapt the behaviour to your application by using UPS-CONF software

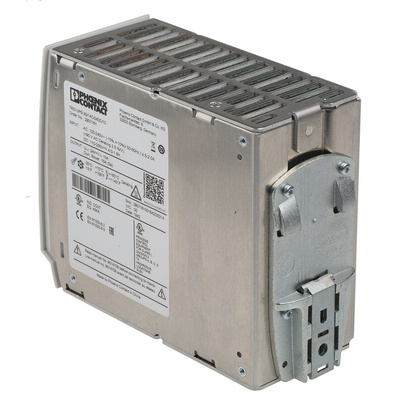

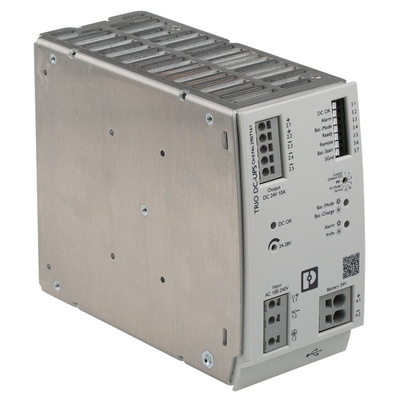

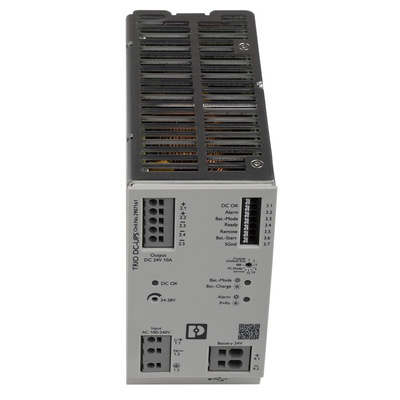

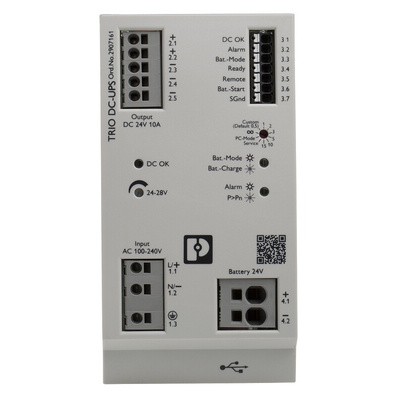

Phoenix Contact Uninterruptible Power Supply, 24V DC Output, 68mm Length - TRIO-UPS-2G/1AC/24DC/10 - 2907161

Choose this UPS (uninterruptible power supply) from Phoenix Contact to make sure critical equipment runs continuously in case of unexpected power failures or surges. The unit will switch to battery operation with no interruption of electricity, ensuring the safety of machinery and personnel.
Thanks to its valve-regulated lead-acid (VRLA) energy storage system, the UPS offers a long buffer time of ≥ 25ms. This makes it ideal for ensuring stable DC (direct current) supply to sensitive industrial devices, especially where voltage spikes are a common issue. The unit doesn't need a mains input to start up, so you can rely on it for power in emergency situations.
Push-in technology makes this UPS easy to install in commercial, residential and industrial settings. To suit factory automation and server room requirements, it comes with a built-in USB interface for connection to higher-level controllers such as industrial PCs.

• Dimensions of 68 (L) x 160 (W) x 130mm (D) for use in space-limited setups
• Light, at just of 1.3kg
• High efficiency of 91% to 96% (based on mode of operation)
• Standard input voltage of 100 to 240V AC
• IP20 (ingress protection) rating makes it touch-proof, for enhanced workplace safety

Datasheet 2907161
