Phoenix Contact TRIO-UPS

The Phoenix Contact range of TRIO-UPS is a compact range of DC uninterruptible power supplies.
The UPS will switch to battery operation with no interruption if there is a mains power failure. This provides the protection and reliability of your electrical loads. When the mains power is restored the UPS will switch to normal operation.

Features and Benefits

• The power supply and electronic switchover in the same housing means that you save space
• Large selection of VRLA energy storage systems means long buffer times
• Push-in connection means they are easy to install
• Wide temperature range
• Use anywhere in the world
• No power supply is not an issue as you can start up using the energy that is stored
• Adapt the behaviour to your application by using UPS-CONF software

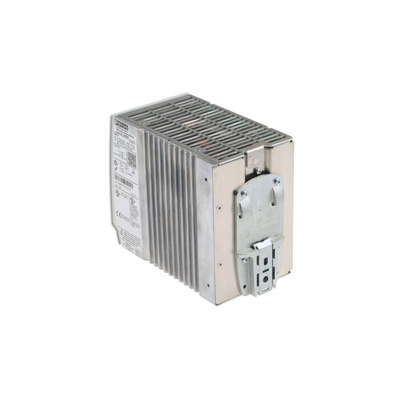

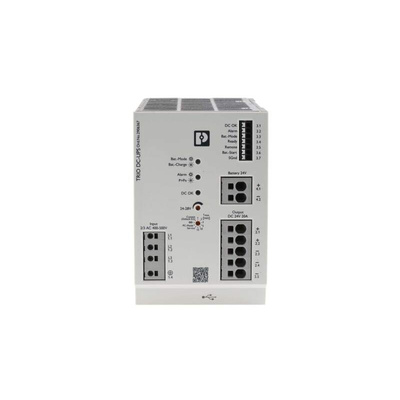

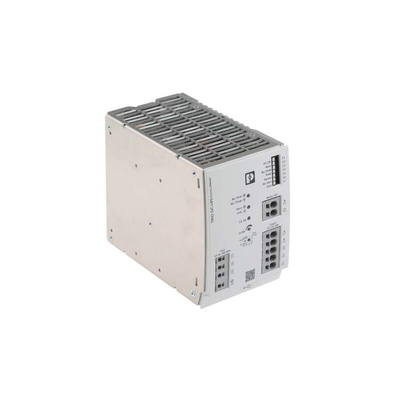

Phoenix Contact Uninterruptible Power Supply, 24V DC Output, 88mm Length - TRIO-UPS-2G/3AC/24DC/20 - 2906367

Keep industrial processes running smoothly in the event of mains failure using this UPS (uninterruptible power supply) from Phoenix Contact. It offers reliable protection of electrical systems as it switches to battery operation without any interruption. When mains power is restored, it automatically switches back to normal mode.
This unit can switch on from the available energy storage, so you can power up critical processes even without a mains input. Long buffer times, thanks to the VRLA (valve-regulated lead-acid) energy storage system, mean you can be confident of extended service life.
There's a power supply and an electronic switchover in the same housing, saving you valuable space. Push-in technology ensures easy installation, and a wide operating temperature range of -25°C to +70°C makes this a versatile choice for industrial settings.

• Dimensions of 88 (L) x 160 (W) x 130mm (D), so suited for use in compact setups
• Input voltage of 400V AC and output voltage of 24V DC for standard use
• DIN rail mounting type makes installation straightforward
• Weight of 1.7kg for easy handling

Datasheet 2906367
