2907071, Phoenix Contact 18 → 30V dc Input DIN Rail Uninterruptible Power Supply (720W), QUINT4, ИБП

Phoenix Contact QUINT4-UPS

The Phoenix Contact range of QUINT4-UPS is a range of uninterruptible power supplies with IQ technology.
The UPS will continue to switch to battery operation with no interruption if there is a mains power failure. With IQ technology the UPS provides you with information on the charging state as well as the energy storages remaining runtime.

Features and Benefits

• The UPS module and power supply in the same housing means that you save space
• Monitors and optimizes the energy storage
• Modular system gives more flexibility
• Automatic recognition of battery capacities and technologies
• Monitors output current and voltage
• Easy integration into networks using PROFINET, EtherNet/IP, EtherCAT® and USB interfaces
• Use anytime, anywhere
• Early warning given before failure happens

Typical Applications

Typical applications include communications and server rooms, network ICT environments, Data centres and Hospitals.

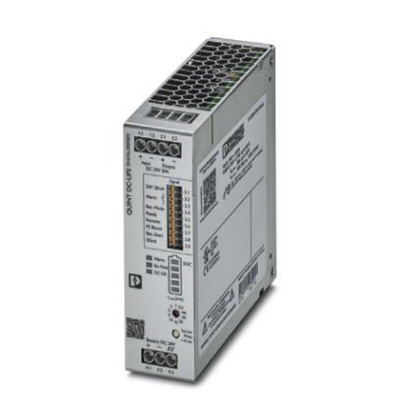

Phoenix Contact Uninterruptible Power Supply, 18 to 32V DC Output, 40mm Length - QUINT4-UPS/24DC/24DC/20 - 2907071

Ensure maximum productivity in your industrial processes with this UPS (uninterruptible power supply) from Phoenix Contact. The unit provides backup electricity to critical systems in the event of a mains failure.
Thanks to the intelligent battery management system and a powerful battery charger integrated into the unit, you can be confident of superior system availability. It's capable of integration with PROFINET, EtherNet/IP, EtherCAT and USB interfaces, so it's easy to configure and monitor your systems remotely. The unit also evaluates its SOH (state of health) and SOC (state of charge), which helps you plan in advance for maintenance.
Phoenix Contact's innovative SFB (selective fuse breaking) technology means this device selectively trips standard miniature circuit breakers. This means loads connected in parallel in unaffected areas continue working in case of an error or load malfunctions. This USP is designed for continuous production cycles in Industrie 4.0 automation systems.

• Compact size at 40 (L) x 125 (W) x 130mm (D)
• DC-DC power signal conversion type for versatile use
• High efficiency of 98%
• Broad operating temperature range of -25°C to +70°C
• Light weight of 600g for easy handling

Datasheet 2907071
