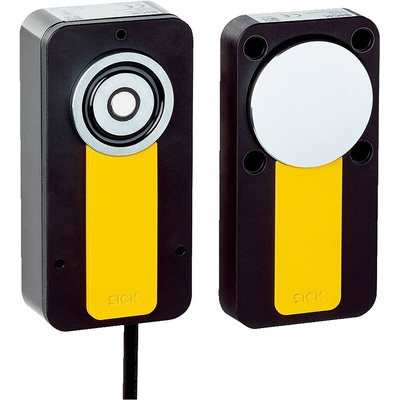

MLP1-SMMA0AC, Sick MLP1 Series Safety Switch, 24V dc, Actuator Included

Sick Non-Contact Switch

The Sick MLP1 series non-contact switch device consists of a non-contact sensor with a locking solenoid and coded actuator. This actuator has a low coding level. The actuator approaches the sensor if the protective device is closed and it is read out if the actuation field is reached and evaluated by the RFID sensor. The safe output signal switching device (OSSD) switches if the code is valid. Also, the locking device is active when the locking solenoid is supplied with power. This locking device is designed for non-series connection.

Features and Benefits

Magnetic locking function prevents the protective door from being opened, avoiding unwanted interruption to the production process
Maximum safety for door monitoring with two self-monitored semiconductor outputs (OSSDs)
high-level of machine availability due to large door offset tolerance
Long product service life due to low wear and low maintenance configuration
Discreet integration into the machine design because of the innovative mounting option
Quick connection and simple cascading via a M12 plug connector reduce cost and the amount of wiring required
Flat actuator without protruding parts minimizes the risk of injury

Certifications

IP67 rated
CE certified
UL approved
FCC certified
EAC certified
