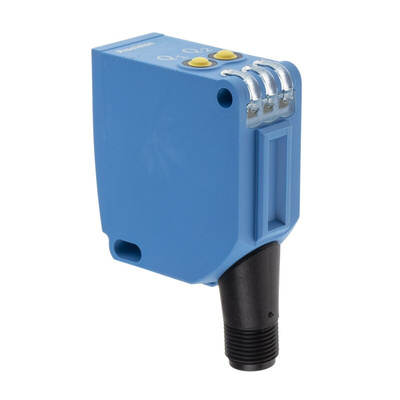

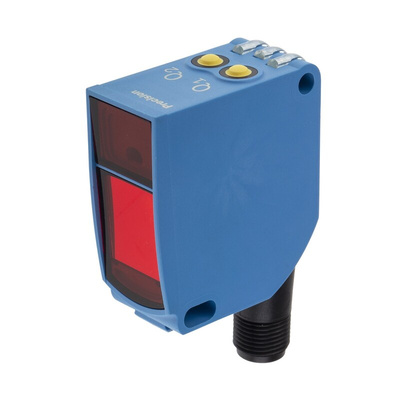

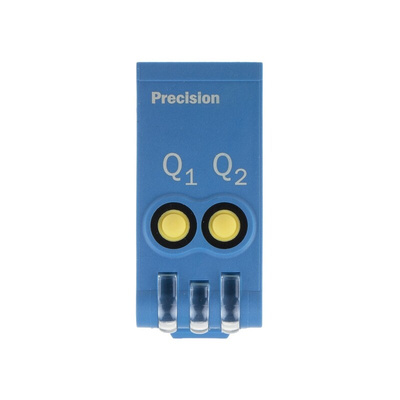

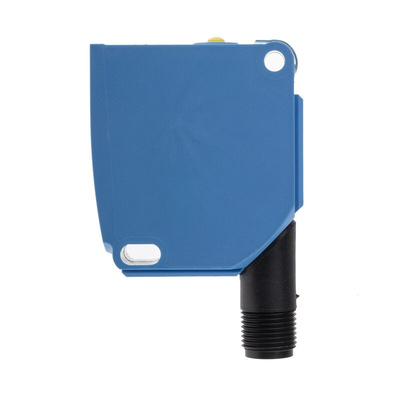

WTT12LC-B2543, Sick Background Suppression Photoelectric Sensor, Block Sensor, 50 mm → 1.8 m Detection Range, Фотоэлектрический датчик

Sick PowerProx Series IO-Link Colour Sensors

Sick Photoelectric Sensor

The Sick multitask photoelectric sensor offers advantages of time-of-flight technology in the world's smallest sensor housing to date, giving maximum flexibility when designing machines. This photoelectric rectangular sensor has background suppression detection. It objects being conveyed at high-speed, small and flat objects, and jet-black or shiny objects can now be reliably detected at sensing ranges between 5cm and 4m. This sensor style is rectangular with background suppression. The 8 switching points for distance to object, of which 2 can be inverted, 1 switching point as switching window or configurable with hysteresis, multifunctional input: sender off, external teach, inactive.

Features and Benefits

• Detection range is 50mm to 1800mm
• Electrical connection M12 male connector
• Extremely small sensor housing ensures great flexibility when designing machines
• High levels of availability and durability
• Highly visible light spot simplifies alignment of the red-light versions
• Housing material is plastic, vistal
• IO-Link extends functionality
• IP rated IP67
• Laser class 1 and therefore eye-safe
• Light source is laser light
• Maximum current 100 mA
• Output type is NPN, PNP
• Precise, simple adjustment with potentiometer, teach-in button, or display
• Reliable object detection at high sensing ranges and large detection angles
• Response time 16.7 ms
• Terminal type M12 male 5-pin connector
• Operating temperature ranges between -35°C and 50°C

Applications

• Empty bay and clearance detection
• Handling and assembly technology
• Loop control
• Precise edge detection in the timber industry
• Protecting doors and gates
• Quality control for the automotive industry and its parts suppliers
• Rapid counting in the packaging industry

Sick I/O-Link Photoelectric Sensors

With its line of Smart Sensor Solutions powered by I/O-Link, SICK offers a range of products providing solutions that optimize the automation technology used in machines and systems.

I/O-Link is the first standardised I/O technology worldwide (IEC 61131-9) for the communication with sensors and actuators. I/O-Link provides a point-to-point connection located in any given network.
