KTX-WN91141252ZZZZZZZZZZZZZZZ1, Sick Contrast Sensors 13 mm, RGB LED, NPN, 100 mA, 10.8 → 28.8 V dc, IP67, Датчик контраста

SICK RGB LED Contrast Sensor

The SICK RGB contrast sensor is a 13mm NPN type twin-eye technology product. It is a better quality contrast detection and sensing distance in tried and tested housing. It is the contrast sensor detects even the smallest contrasts such as shiny or transparent surface or greyscale variations at the highest speed. It has a large dynamic range for good performance and excellent contrast resolution with complex colour variations too. The operating temperature ranges between -20°C and 60°C with a switching frequency of 50KHz.

Features and Benefits

• Flexible for format change and process design
• High flexibility for detection range up to 13mm
• Ideally emitted light is selected automatically at RGB variants

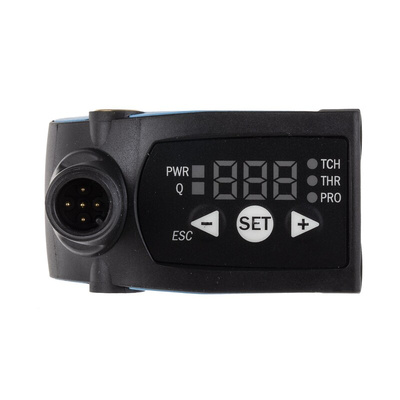

• LED status display
• M12 male 5-pin connector type
• Multi-functional sensor adjustment
• Requires supply voltage between 10.8V and 28.8V with Current rating is 100mA

Applications

• Colour control in line protection
• Label alignment on bottles
• Monitoring of wafers
• Printing industry
• Roll end monitoring

Certifications

• IP67 rated

Datasheet

Additional Datasheet
