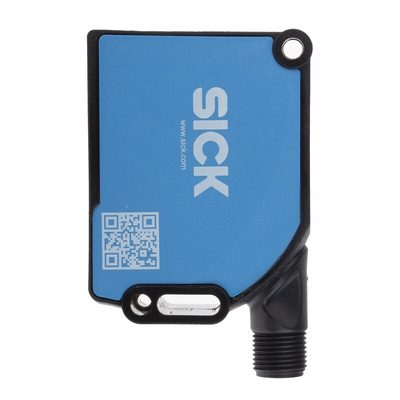

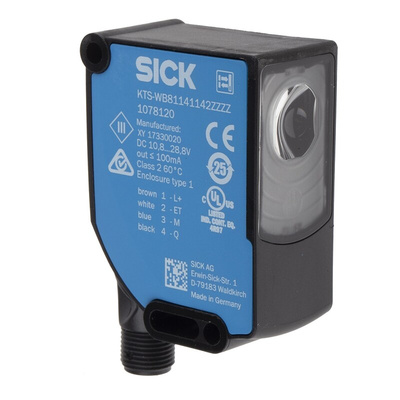

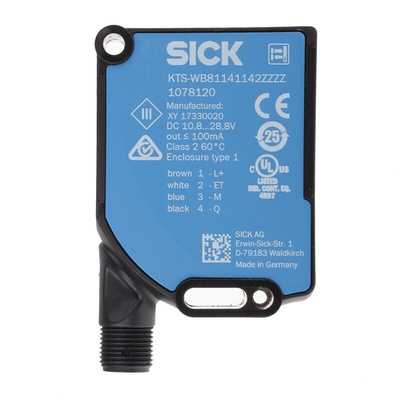

KTS-WB81141142ZZZZ, Sick Contrast Sensors 13 mm, RGB LED, Pull, Push, 100 mA, 10.8 → 28.8 V dc, IP67, Датчик контраста

1806343
Номер производителя: KTS-WB81141142ZZZZПроизводитель: Sick
Цена за шт.
107865.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

SICK LED Contrast Sensor

The SICK LED contrast sensor is KTS core series universal contrast detection with white or RGB LED is for better quality contrast detection and sensing distance with VISTAL housing. This pull-push output type contrast sensor detects even the smallest contrasts such as shiny or transparent surface or greyscale variations at the highest speed. It uses two-point and dynamic teach-in process for sensor and different process setting makes it more flexible and detection steadier. The operating temperature ranges between -20°C and 60°C. It has a high switching frequency up to 25KHZ for a quick machine process.

Features and Benefits

• High flexibility of detection range is up to 13mm
• Ideally emitted light is selected automatically at RGB variants

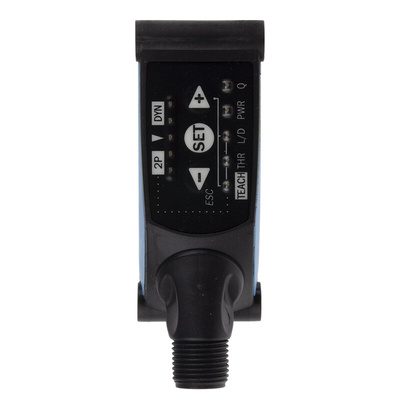

• LED display with flexible format change and process design
• Light and dark switching
• M12 male 4-pin connector type
• Manual sensor adjustment for stable material detection with user-friendly operation
• Require supply voltage in between 10.8V and 28.8V with Current rating is 100mA

Applications

• Colour control in line protection
• Label alignment on bottles
• Monitoring of wafers
• Printing industry
• Roll end monitoring

Certifications

• IP67 rated

Техническая спецификация
pdfDatasheet
Диапазон обнаружения:
13 мм
Источник света:
RGB LED
Максимальный ток:
100 мА
Материал корпуса:
Vistal
Напряжение питания:
10.8 → 28.8 В пост. тока
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-20°C
Светодиодный дисплей:
Да
Серия:
KTS
Степень защиты IP:
IP67
Тип выхода:
Pull, Push
Тип клеммы:
M12 Male 4-pin Connector
Тип монтажа:
Крепление на панель
Частота переключений:
25 кГц
Электрическое соединение:
M12 Штекерный разъем
