KTS-WB9114115AZZZZ, Sick Contrast Sensors 13 mm, RGB LED, Push-Pull, 100 mA, 10.8 → 28.8 V dc, IP67, Датчик контраста

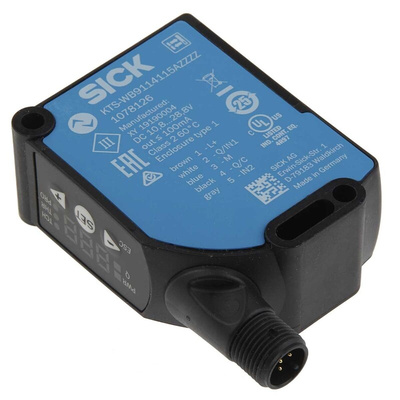

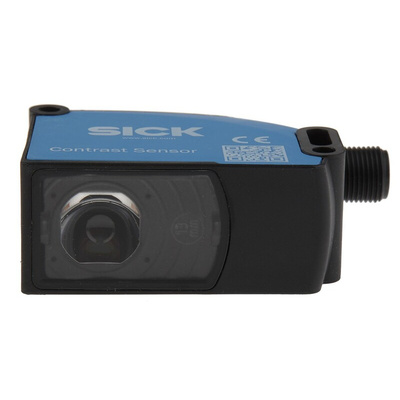

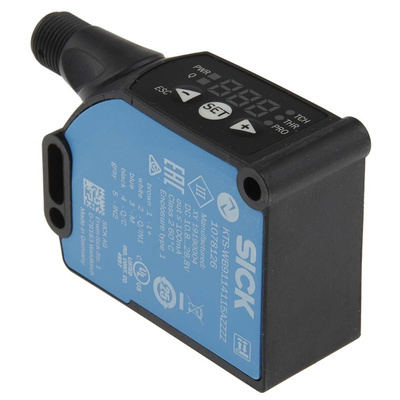

SICK RGB LED Contrast Sensor

The SICK RGB LED contrast sensor is KTS core series with modern twin-eye technology is for better quality, accurate contrast detection and sensing distance with VISTAL housing. This pull-push output type contrast sensor detects even the smallest contrasts such as shiny or transparent surface or greyscale variations at the highest speed. It uses two-point and dynamic teach-in process for sensor and different process setting makes it more flexible and detection steadier. The operating temperature ranges between -20°C and 60°C. It has a high switching frequency up to 50KHZ for a quick machine process.

Features and Benefits

• 7-segment display with flexible format change and process design
• Compact design and easy to install
• High flexibility of detection range is up to 13mm
• I/O link and automation functions
• Ideally emitted light is selected automatically at RGB variants
• Light and dark switching
• M12 male 5-pin connector type
• Manual sensor adjustment for stable material detection with user-friendly operation
• Require supply voltage between 10.8V and 28.8V with a Current rating is 100mA

Applications

• Colour control in line protection
• Label alignment on bottles
• Monitoring of wafers
• Printing industry
• Roll end monitoring

Certifications

• IP67 rated

Datasheet

Guide KTS-WB9114115AZZZZ
