Bridgetek MCU Development Module

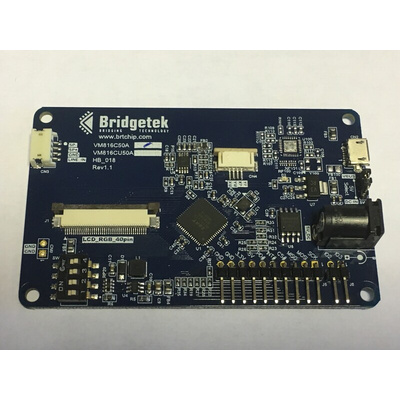

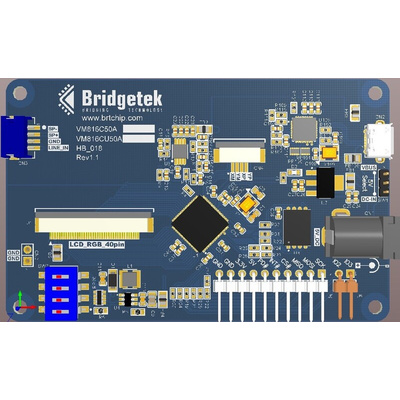

The Bridgetek MCU development module is a credit card-sized graphics controller module with a BT816 device. This is a USB version with 4.3/5.0/7.0in LCD connector but no display and has resistive touch control. It includes 16Mbyte flash for bitmaps and other design asset storage, backlight control and a connector for an audio speaker. This product can interface directly with any host with the help of a USB host port.
Features and Benefits:
• Flexible power supply: Powered by SPI host connector or via USB Micro-B port or via a 2.1mm DC power jack
• on-board 16Mbyte IC flash memory
• on-board audio power amplifier and audio connector for external speaker support
• on-board LCD backlight LED driver
• Support USB high-speed connection to PC or another USB host (for VM816CU50A modules)
• Supports mono audio output
• Supports single or quad SPI (for VM816C50A modules)
Applications:
• Electronics laboratories
• Embedded systems
• IoT systems
Certifications:
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
