Bridgetek MCU Development Kit

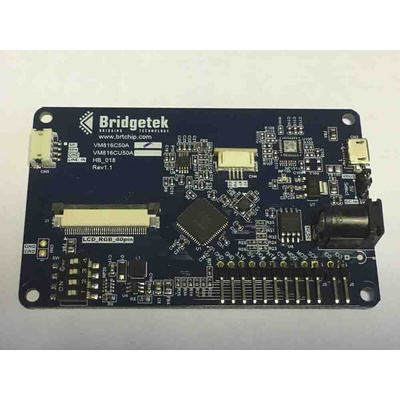

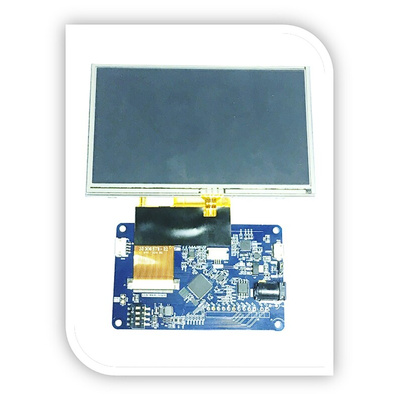

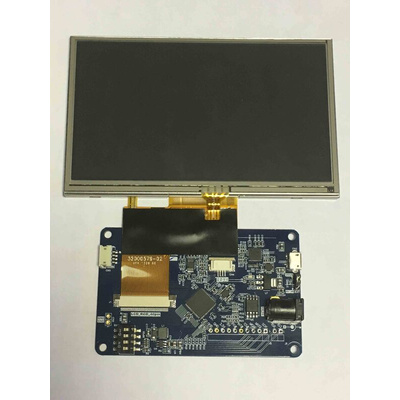

The Bridgetek MCU development unit is a credit card-sized graphics controller module with BT816 device. This is a USB version that supports 5in displays with 800x480 pixel resolution and has resistive touch control. It includes 16Mbyte flash for bitmaps and other design asset storage, backlight control and a connector for an audio speaker. This product can interface directly with any host with the help of a USB host port.
Features and Benefits:
• Flexible power supply: Powered by an SPI host connector or via USB Micro-B port or via a 2.1mm DC power jack
• on-board 16Mbyte IC flash memory
• on-board audio power amplifier and audio connector for external speaker support
• on-board LCD backlight LED driver
• Support USB high-speed connection to PC or other USB Host (for VM816CU50A modules)
• Supports mono audio output
• Supports single or quad SPI (for VM816C50A modules)
Applications:
• Electronics laboratories
• Embedded systems
• IoT systems
Certifications:
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
