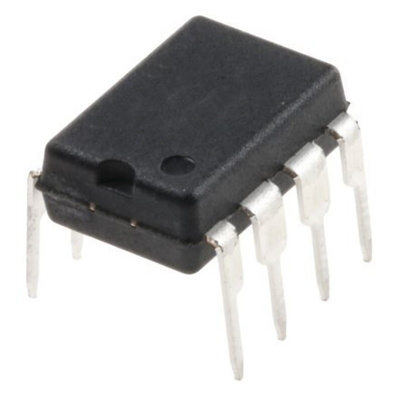

The VO3120 consists of a LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides he drive voltages required by gate controlled devices. The voltage and current supplied by this optocoupler makes it ideally suited for directly driving IGBTs with ratings up to 800 V/50 A. For IGBTs with higher ratings, the VO3120 can be used to drive a discrete power stage which drives the GBT gate.
2.5 A minimum peak output current
25 kV/μs minimum common mode rejection (CMR) at VCM = 1500 V
ICC = 2.5 mA maximum supply current
APPLICATIONS:
Isolated IGBT/MOSFET gate driver
AC and brushless DC motor drives
Induction stove top
