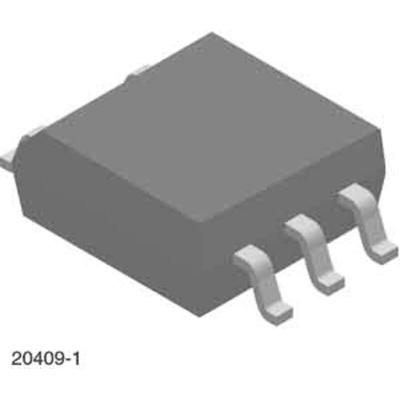

Vishay, VOM453T DC Input Diode Output Optocoupler, Surface Mount, 5-Pin SOP

The VOM452 and VOM453, high speed optocouplers, each consists of a GaAlAs infrared emitting diode, optically coupled with an integrated photo detector and a high speed transistor. The photo detector is junction isolated from the transistor to reduce miller capacitance effects. The open collector output function allows circuit designers to adjust the load conditions when interfacing with different logic systems such as TTL, CMOS, etc. Because the VOM452 and VOM453 have a Faraday shield on the detector chip, it can also reject and minimize high input to output common mode transient voltages. There is no base connection, further reducing the potential electrical noise entering the package. The VOM452 and VOM453 are suitable for surface Mounting. This an ideal solution for Industrial communication bus isolation, as well as isolated drive circuit applications such as IPM (intelligent power module) drivers.

Surface mountable
Compatible with infrared vapor phase reflow and wave soldering processes
APPLICATIONS:
Fieldbus communication and control
Logic ground isolation
Analog signal ground isolation

Datasheet
