ILPX-K517-RGBW-2M0-IC65V10-01., Intelligent LED Solutions 5050 Pixel Series, RGBW LED Strip 2m 5V dc

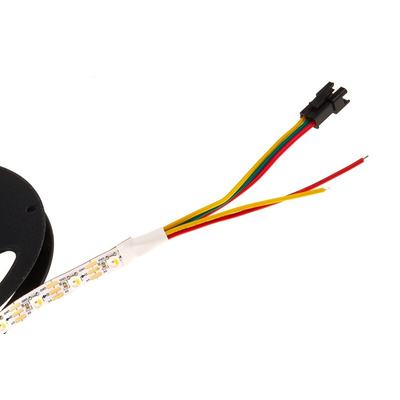

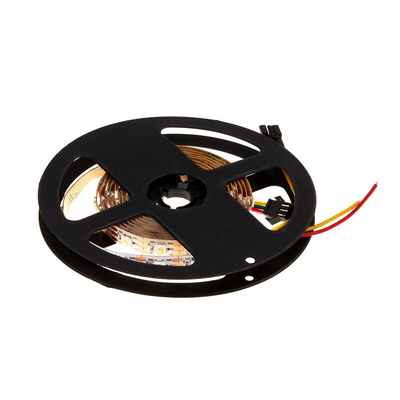

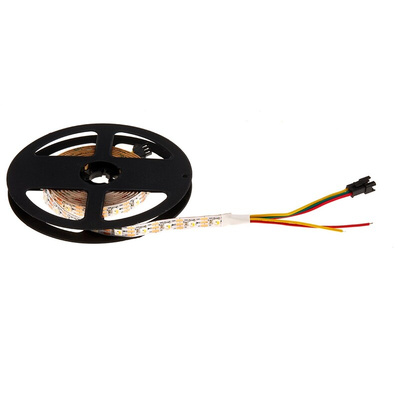

Intelligent LED Solutions RGBW LED Strip

The Intelligent LED Solutions RGBW LED is a 17mm pitch with voltage rating 5V. It is based around the industry-standard IC6812 LED driver IC. Each RGBW LED has one of these tiny devices built-in, enabling you to drive the whole 2m LED flexible strip with just three wires and having individual control over every LED. Each LED can be set to any 8-bit RGBW combination giving 32-bit colour depth. These LEDs are controlled by internal drivers that are chained together on the strip, so you can have any number of LEDs in your design, giving you the option to cut the flexible strip at any point.

Features and Benefits

• Beam angle is 120°• Full control over each LED with serial data
• ILP flexi strip can be cut after each LED
• Max single power run is 2m. If you need longer, you have to run a separate power line
• Mounting non IP version is 3M double sided thermal tape
• Reel length is 2000mm
• Strip width non IP version is 10mm
• White flexi material
• Working voltage is 5VDC constant voltage

Applications

• Accent lighting
• Back lighting
• Bar lighting
• Desk lighting
• Garage lighting
• Industrial applications
• Photography
• Refrigeration
• Task lighting
• Under cabinet lighting
