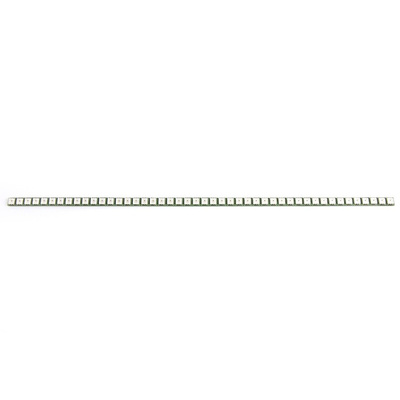

ILPS-K506-RGB1-46x01-SK105-01., Intelligent LED Solutions RGB LED Strip 5.5V

The Intelligent LED Pixel (ILP) range of products are based around the industry standard SK6812 LED driver IC. Each of the RGB LEDs has one of these tiny devices built in, enabling you to drive the whole 46x1 LED strip with just 3 wires and having individual control over each and every one of the LEDs. Each LED can be set to any 8-bit RGB combination giving 24-bit colour depth. The LEDs are controlled by internal drivers that are chained together on the panel so there is no complicated wiring required. These ILP rigid strips have solder pads for easy linking of multiple devices.

Strip size: 325mm x 7.5mm x 4mm
LED Pitch: 6mm
Working Voltage: 5V DC constant voltage
Full control over each LED with serial data
Beam Angle: 120 Degrees
Ability to link multiple strips
Applications
LED advertising screens
Point of Sale
Back Lighting
Accent Lighting
Bar Lighting
Industrial Applications
Photography

Datasheet ILPS-K506-RGB1-46x01-SK105-01.

Datasheet - ILPS-K506-RGB1-46X01-SK105-01.
