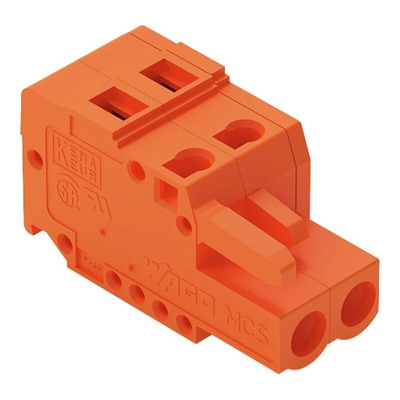

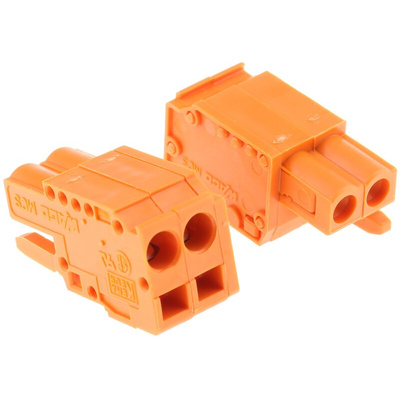

231-302/026-000, Wago 5.08mm Pitch 2 Way Pluggable Terminal Block, Plug, Spring Cage Termination

Wago Pluggable Terminal Block, 16A Current Rating, 0.08 to 2.5mm² Wire Size Range - MCS-MIDI Classic Series - 231-302/026-000

Breeze through making wire connections with this pluggable terminal block from Wago. The module slots into a board-mounted header (240-7761), providing plug-in connectivity for speedy circuit assembly. Don't worry about damage, as the unit's tin-plated copper alloy contacts shrug off corrosion to keep power flowing strong. Spring cage terminals mount the component securely to a cable without the need for any tools. Thanks to the block's coding fingers, it only mates with its header when lined up properly to avoid damage.

Features & Benefits

• Standard pitch of 5.08mm to fit with everyday hardware
• Resilient PA body stands up to impact and wear
• Built-in test ports to make troubleshooting a breeze
• Takes conductors sized between 0.08 and 2.5mm² for flexible connectivity
• Two poles to manage multiple circuits at once

Applications

• Industrial automation
• Assembly lines
• Packaging industry

Can I use this terminal block with moving equipment?

Yes, this connector's anti-rotation design stops it from turning once it's mounted. This minimises the risk of disconnection from heavy machine movement.

MCS-MIDI Classic Female Connectors Data Sheet

Female Connectors Pin Spacing 5 mm, 5.08 mm MCS-MIDI Classic Data Sheet
