Vishay MOSFET

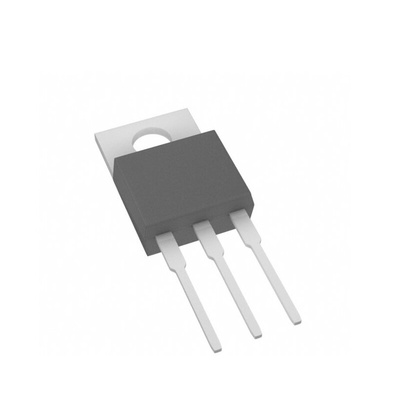

The Vishay through-hole mount N-channel TO-220AB-3 MOSFET is a new age product with a drain-source voltage of 600V and a maximum gate-source voltage of 30V. It has a drain-source resistance of 176mohms at a gate-source voltage of 10V. It has a maximum power dissipation of 227W and continuous drain current of 21A. It has a driving voltage of 10V. This product has been optimized for lower switching and conduction losses. The MOSFET offers excellent efficiency along with a long and productive life without compromising performance or functionality.
Features and Benefits
• Fast body diode MOSFET using E series technology
• Halogen free
• Increased robustness due to low Qrr
• Low figure-of-merit (FOM) Ron x Qg
• Low input capacitance (Ciss)
• Operating temperature ranges between -55°C and 150°C
• Reduced trr, Qrr and IRRM
• Ultra low gate charge (Qg)
Applications
• Light emitting diodes (LEDs)
• 3-level inverters
• AC/DC bridges
• ATX power supplies
• High-intensity lighting (HID)
• LLC
• Phase shifted bridge (ZVS)
• Power factor correction power supplies (PFC)
• Server and telecom power supplies
• Solar PV inverters
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• UIS tested
