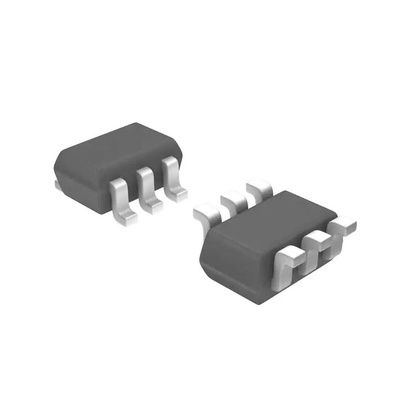

Vishay Load Switch
The Vishay TDFN4 P-channel slew rate controlled switch is a new age product with an ultra-low leakage, quiescent current slew rate control and reverse blocking capability. It has power dissipation of 250mW and drain-source resistance of 147mohm. It has an output current of 1.2A. The load switch features low input logic level to interface with low control voltage from microprocessors. The load switch follows logic high enable control. The compact package options, operation voltage range, and low operating current make it a good fit for battery power applications.
Features and Benefits
• 1.5V to 5.5V input voltage range
• Low on resistance RDS (on)
• No bias power rail required
• Operating temperature ranges between -40°C and 85°C
• Reverse blocking capability
• Slew rate controlled turn on time: 100μs
• Ultra low leakage and quiescent current: - VIN quiescent current = 0.01nA - VIN shutdown leakage = 0.20nA
Applications
• Battery powered devices
• Internet of things
• Portable Instruments
• Portable medical devices
• Security systems
• Smart meters
• Wearable
• Wireless sensor network
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
