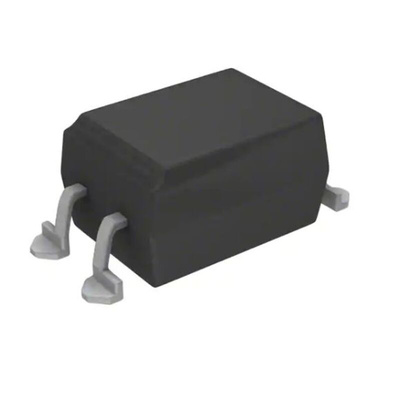

Vishay, SFH619A-X007T Photodarlington Output Optocoupler, Surface Mount, 4-Pin SMD

Vishay Optocoupler

The Vishay SFH619A series SDM 4 optocoupler is optically coupled isolator with a gallium arsenide infrared LED and a silicon photodarlington sensor. Switching can be achieved while maintaining a high degree of isolation between driving and load circuits. This optocoupler can be used to replace reed and mercury relays with advantages of long life, high-speed switching and elimination of magnetic fields.

Features and Benefits

• Compatible with Toshiba TLP627
• Forward current rating 60mA
• Forward voltage rating 1.2V
• High collector emitter voltage is VCEO 300V
• High isolation test voltage is 5300`VRMS
• Operating temperature ranges between -55°C and 100°C
• Standard plastic DIP-4 package

Certifications

• BSI IEC 60950, IEC 60065
• FIMKO
• UL file no. E52744 system code H
