Vishay TVS Diode

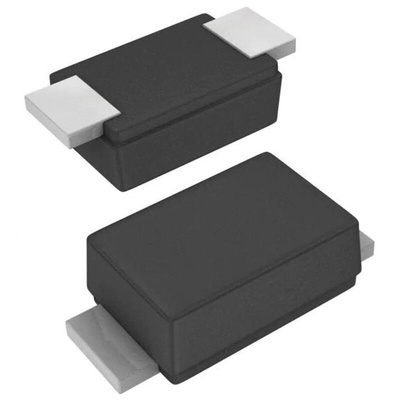

The Vishay SMF DO-219AB package, surface mount ESD protected unidirectional TVS diode is a voltage suppressor with has a stand-off voltage rating of 24V and reverse breakdown voltage of 26.7V. It has a maximum peak pulse current rating of 5.1A.
Features and Benefits
• 200W peak pulse power capability with a 10/1000μs waveform, repetition rate (duty cycle): 0.01%
• ESD capability: human body model: class H3B: > 8kV
• ESD immunity ±30kV contact discharge and ±30kV air discharge
• Excellent clamping capability
• Halogen and lead (Pb) free component
• Low incremental surge resistance
• Low noise technology
• Low profile package
• Operating junction temperature range between -65°C and 175°C
• Very fast response time
• Wave and reflow solderable
Applications
• Automotive load dump
• Sensitive electronics protections like ICs, MOSFET, signal lines of sensor units for consumers, computer, industrial, telecommunication
Certifications
• AEC-Q101 qualified
• Automotive Grade
• e3
• IEC 61000-4-2
• J-STD-020
• UL 94 V-0 listed
